When it comes to tool steels, A2 tool steel has consistently been one of the most popular choices for industries requiring a combination of toughness, wear resistance, and dimensional stability. Known as an air-hardening, cold-work tool steel, A2 has earned a reputation as a versatile grade widely used in toolmaking, die manufacturing, and industrial applications where precision and durability are critical.
In this article, we’ll explore what A2 tool steel is, its key properties, heat treatment process, common applications, and why it remains a reliable choice across multiple sectors. Finally, we will also highlight the advantages of sourcing A2 tool steel from FCS Tool Steel, a trusted supplier for global buyers such as wholesalers, distributors, and stockists.
Overview of A2 Tool Steel
A2 tool steel is classified under the A series of cold-work tool steels, which are known for being air-hardening grades. Unlike oil-hardening (O-series) or water-hardening (W-series) steels, A2 hardens through air cooling, which makes it less prone to distortion and cracking during the hardening process.
It has a balanced composition containing carbon (C), chromium (Cr), molybdenum (Mo), and vanadium (V). This chemistry provides a unique balance between toughness, hardness, and wear resistance, making A2 one of the most versatile tool steels for industrial use.
A2 sits right in the middle between O1 tool steel (excellent machinability but lower wear resistance) and D2 tool steel (excellent wear resistance but reduced toughness). For many users, A2 is the “sweet spot” between the two, offering a balance that can handle a wide range of applications.
A2 Tool Steel:Chemical Composition and Properties
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.95–1.05 |
| Chromium (Cr) | 4.75–5.50 |
| Molybdenum (Mo) | 0.90–1.40 |
| Vanadium (V) | 0.15–0.50 |
| Manganese (Mn) | 0.40–1.00 |
| Silicon (Si) | 0.10–0.50 |
| Nickel (Ni) | up to 0.30 |
| Iron (Fe) | balance |
International Standards for A2 Tool Steel
A2 tool steel matches several grades in major steel standards around the world. These equivalents have the same mechanical properties, composition, and performance. You get the same quality even with a different label.
| USA (ASTM) | German (DIN/EN) | Japan (JIS) | British (BS) |
|---|---|---|---|
| A2 | 1.2363/X100CrMoV5 | SKD12 | BA2 |
Key Properties of A2 Tool Steel
A2 tool steel is valued for several outstanding features:
Excellent Dimensional Stability
A2 is less prone to distortion during heat treatment compared to oil-hardening steels. This makes it ideal for precision tools and dies.
Good Toughness
Compared to D2 steel, A2 offers higher toughness, reducing the risk of chipping or cracking during heavy-duty operations.
Wear Resistance
Its chromium content ensures good wear resistance, making A2 suitable for tools subjected to repetitive use.
Air Hardening
The air-hardening property reduces quench cracking risk and allows for simpler heat-treatment processes.
Decent Machinability
While not as machinable as O1, A2 still machines well and provides a workable balance between machinability and hardness.
Hardness Range
A2 can achieve hardness levels up to 60–62 HRC, depending on the heat treatment process.
Heat Treatment of A2 Tool Steel
The performance of A2 is heavily influenced by its heat treatment process. The typical cycle includes:
- Annealing: Heat to 845–870°C, then furnace cool slowly to about 480°C before air cooling. This ensures machinability.
- Preheating: Heat to 730–790°C to equalize.
- Austenitizing: Heat uniformly to 955–980°C and hold until temperature equalizes.
- Quenching: Air cooling is generally sufficient, though controlled gas quenching is also used.
- Tempering: Usually done at 150–540°C depending on the required hardness. Double tempering is often recommended for higher stability.
Proper heat treatment gives A2 its balanced hardness and toughness profile, ensuring long-lasting tool life.
Applications of A2 Tool Steel
A2 is a true all-rounder and is applied across many industries. Some common uses include:
- Blanking Dies & Punches: High resistance to chipping and wear.
- Forming Dies: Excellent dimensional stability ensures tight tolerances.
- Shear Blades: Combines toughness and hardness for clean cutting.
- Chisels & Gauges: Wear resistance makes A2 a good choice for woodworking and measuring tools.
- Industrial Knives: Used in applications requiring sharpness retention.
- Injection Molds: Beneficial where both toughness and dimensional stability are required.
A2 Tool Steel Vs Other Grades
- A2 vs O1: A2 is tougher, has better wear resistance, and offers greater dimensional stability during heat treatment. O1, however, is easier to machine.
- A2 vs D2: A2 is tougher and less brittle, while D2 provides higher wear resistance. A2 is more versatile for general toolmaking.
- A2 vs S7: S7 has superior shock resistance, but A2 balances toughness and wear resistance for a wider range of cold-work applications.
- This makes A2 one of the most “balanced” grades in the tool steel family.
Why Choose FCS Tool Steel for A2 Tool Steel?
When it comes to sourcing A2 tool steel, the supplier you choose makes a huge difference. FCS Tool Steel (Fucheng Tool Steel) is a trusted manufacturer and distributor with strong advantages for global buyers:

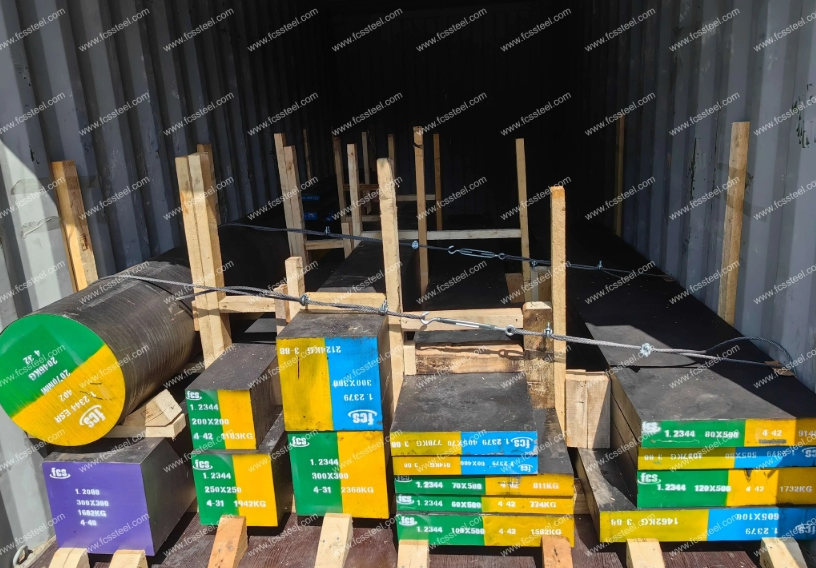

- Wide Product Range – FCS stocks A2 tool steel in various forms such as flat bars, round bars, and customized cut-to-size options.
- High Quality Assurance – Produced with strict metallurgical control, ensuring consistent hardness, toughness, and microstructure.
- Competitive Wholesale Pricing – Tailored for wholesalers, stockists, and distributors who require large-volume supply.
- Global Export Experience – With a proven track record of supplying to Europe, Asia, and North America, FCS ensures reliable delivery and logistics.
- Custom Processing Services – FCS offers annealing, rough machining, and pre-hardened steel supply for reducing downstream production costs.
By choosing FCS Tool Steel, buyers gain a reliable partner who ensures both product quality and business competitiveness.
Summary
So, what is A2 tool steel? It is a balanced cold-work tool steel that offers toughness, wear resistance, and dimensional stability, making it one of the most versatile grades for tool and die applications. With proper heat treatment, A2 performs exceptionally well in blanking dies, shear blades, forming tools, and industrial knives.
For distributors, wholesalers, and stockists looking for reliable A2 tool steel supply, FCS Tool Steel is the right partner. With global export experience, competitive pricing, and high-quality standards, FCS helps businesses secure long-term advantages in the tool steel market.
