FCS K100 Tool Steel
FCS supplies its own-brand material; the following description refers to BÖHLER K100 solely as a technical comparison reference, not as the product being offered.K100 is a 12% cold work die steel from ledeburitic produced by BÖHLER (Austria). It is characterized by a high-carbon and high-chromium structure that forms a large amount of hard carbides and features simple heat treatment. It is suitable for general cold stamping and shearing tools, especially in conventional cold working scenarios where wear resistance is required.
Supply status and size specifications
- Delivery condition: Annealed state (HB ≤ 255)

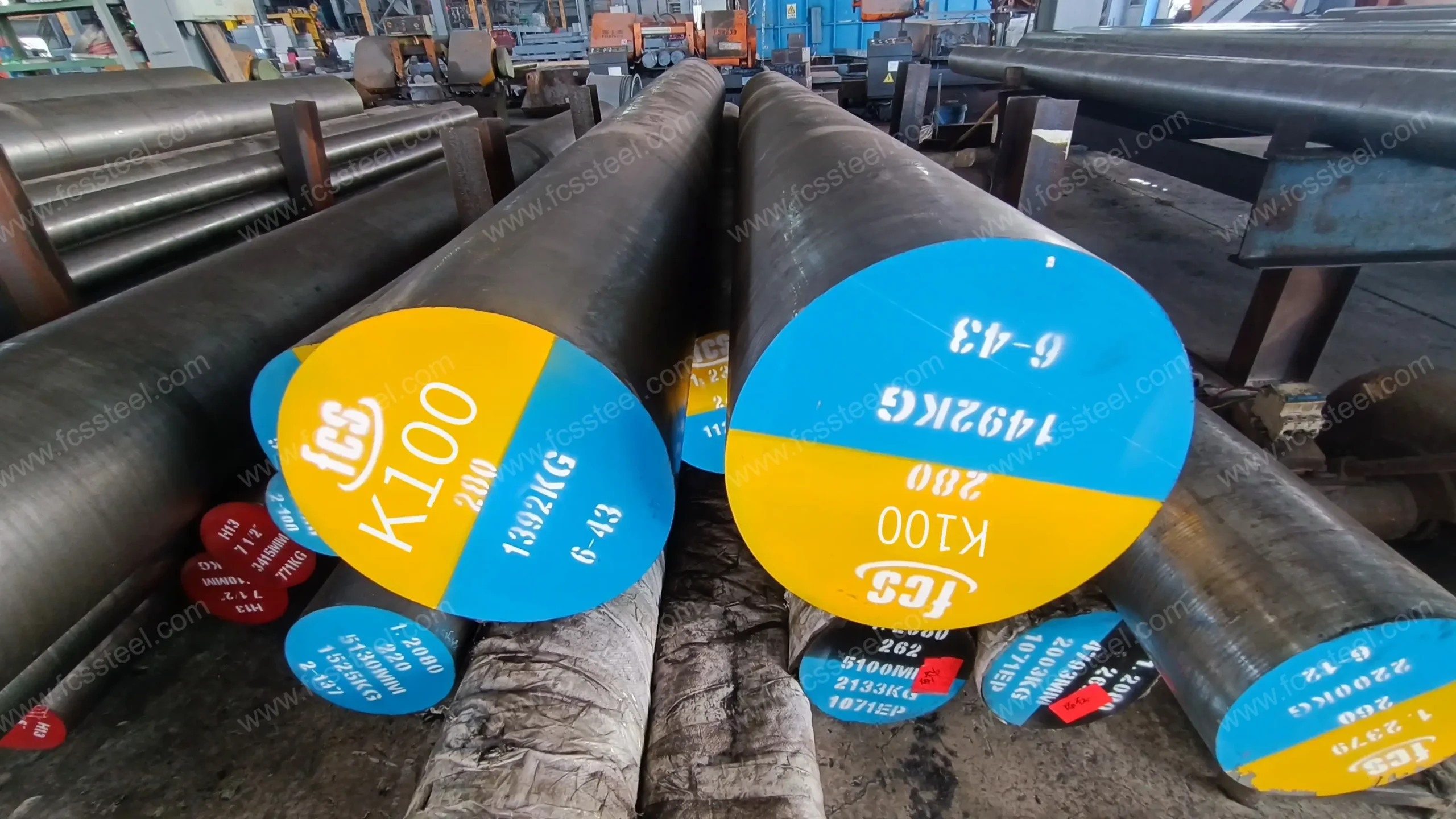

- Supply forms: round steel, flat steel, plates, forgings, custom cutting
- Optional sizes: Diameter Φ10 ~ Φ65/Φ 70 ~ Φ400/500/600/700 mm,thickness 8-45/50-500mm,width 50-1000mm/50-1500mm, Forged disc ≤ 1200mm,
etc
Tool Steel Forming Process Options
Hot Rolled,Hot Forged
Tool Steel Surface Finish
Black,Grinded,Sandblasted,Turned/Machined/Milled/Bright.
What is K100 tool steel?
FCS supplies high-carbon, high-chromium cold work tool steel, with BÖHLER K100 referenced for technical comparison only; the material offered is not original BÖHLER K100.K100 Tool Steel is a high-carbon and high-chromium cold working tool steel, and it belongs to the oil-quenched steel type. It features extremely high wear resistance, good hardenability and dimensional stability, and is widely used in the manufacture of molds and tools with high requirements for impact resistance and friction loss.It is usually supplied in annealed state, which is convenient for mechanical processing. After heat treatment, it can achieve high hardness (about 58 to 62 HRC), making it a very cost-effective material choice in the field of cold working dies.
What are the specifications of FCS K100 tool steel?

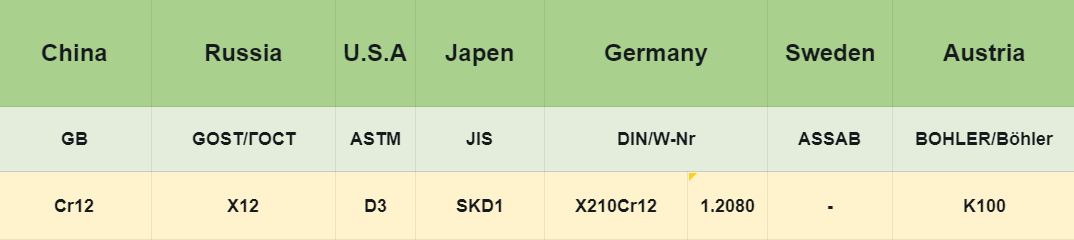

Tool Steel Equivalent Grades
Tool Steel Chemical Composition
Tool Steel Customized Options
- Custom Chemical Composition: Capable of producing standard grades such as GB, DIN, ASTM, JIS, etc. Chemical composition can be custom-produced individually.
- Custom Specifications: Round steel (diameter) and plates (thickness, width) can be custom-produced.
- Professional packaging for long-term storage or extreme transportation conditions: Including black paint spraying on all sides, plastic film wrapping, anti-rust oil spraying, and delivery in wooden cases.
- Custom production according to samples or technical agreements.
- FCS K100 Tool Steel Electroslag Remelting (FCS K100 ESR): Premium option with higher purity and isotropic properties for critical applications.
Tool Steel Smelting process
The performance characteristics
- ✅ High wear resistance: High Cr content enhances surface hardness and service life.
- ✅ excellent hardenability and dimensional stability.
- ✅ Good machinability: The pre-annealed state is convenient for machining.
- ✅ high hardness after heat treatment: up to 58 to 62 HRC.
- ✅ can be used for etching and engraving the surface of molds.
Tool Steel Typical application fields
- Stamping die (cold stamping die.
- Cold scissors (such as shearing knives).
- Cold extrusion die.
- Powder pressing die.
- Forming roller mold.
- High-precision measuring tools, engraving molds, etc.
Trademark & Compliance Disclaimer: All brand names, trade names, and registered trademarks mentioned in this publication (such as DC53, 8407, 8418, K110, S136, NAK80, etc.) are the property of their respective trademark holders. References to these grades are provided solely for cross-reference, technical comparison, and identification purposes, and do not imply any affiliation with, endorsement by, or direct sale of products from the original trademark owners.
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 165 × 60 × 25 cm |
