Top SKD61 Equivalent Materials: H13, 1.2344, and Global Alternatives Explained

Introduction

SKD61 is a widely used hot-work tool steel valued for its toughness, heat resistance, and wear performance. Globally, several steels serve as its equivalents, including H13, 1.2344, and other regional variants. These materials share similar core traits: high chromium levels, good hardenability, and reliable performance in high-temperature forging and die-casting operations.

Despite these similarities, subtle differences exist. H13 closely mirrors SKD61 in hardness and thermal stability, while 1.2344 can offer slightly better wear resistance but varies in tempering behavior. Knowing these distinctions helps engineers select the most suitable steel for molds, dies, and hot-working tools, balancing durability and cost. This article breaks down SKD61’s main global equivalents, comparing their key properties and applications to guide smarter material choices.

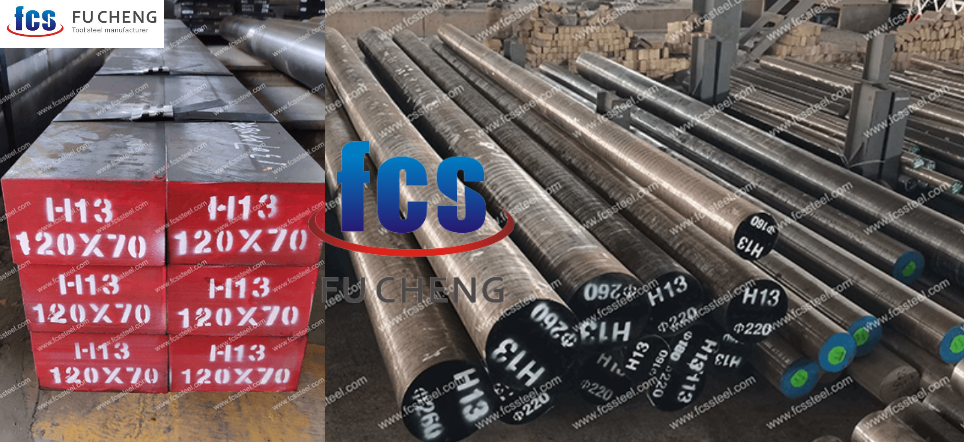

H13 Steel: A Primary Equivalent to SKD61

H13 is the American standard name for what Japan calls SKD61. These materials are the same hot work tool steel. Different countries just use different naming systems. The AISI/ASTM H13 name has become the global reference for this 5% chromium hot-work die steel across North America and many international manufacturing operations.

Chemical Composition: The Foundation of Performance

H13 and SKD61 have matching compositions. That’s why they perform the same in real-world use.

The one notable variation appears with European 1.2344 steel. It contains lower molybdenum (0.3–0.5%) and often has no vanadium. This composition reduces peak hardness a bit but boosts toughness and thermal stability.

Hardness Performance Across Processing States

H13 shows a bit higher hardness values in annealed and cold-drawn conditions. This comes from its molybdenum content optimization. But all three grades achieve the same working hardness range of 45–52 HRC after proper heat treatment. This working hardness range is the sweet spot. Die steels balance wear resistance against thermal fatigue cracking at this point.

Mechanical Strength Under Operating Conditions

H13 delivers strong mechanical properties that impact tooling lifespan:

Tensile strength reaches 1200–2050 MPa (174,000–231,000 psi). This provides the structural backbone to resist deformation under forging pressures.

Yield strength spans 1000–1380 MPa at room temperature. This high yield point prevents permanent deformation. Dies close under pressure without warping.

Charpy V-notch impact values of 16–27 J show the material’s ability to absorb sudden mechanical shocks without breaking. Die casting operations create these impact loads. Molten metal fills mold cavities fast and creates stress.

Elongation of 13.0–13.5% shows enough ductility to prevent brittle failure modes. The 46.2–52.4% reduction in area measurement confirms this ductility. It extends through the material’s cross-section.

Thermal Behavior in Hot Work Environments

The thermal conductivity of 24.3–24.4 W/m-K across the 215–475°C range allows efficient heat dissipation from die surfaces. Dies that can’t transfer heat fast develop hot spots. These hot spots speed up thermal fatigue cracking.

Specific heat capacity of 0.460 J/g-°C means H13 needs substantial energy input to change temperature. This thermal stability helps maintain consistent die temperatures during production runs.

Hot hardness retention extends to 700°C (1300°F). Molybdenum and vanadium form secondary hardening precipitates. These resist softening at extreme temperatures. Standard carbon steels lose hardness fast above 400°C. H13 maintains functional hardness 300°C higher.

Critical Performance Differentiators

Deep hardenability allows H13 to achieve uniform hardness through thick sections exceeding 300mm. Large extrusion dies and forging tooling depend on this through-hardening capability.

Dimensional stability during heat treatment reduces distortion. H13 expands about 0.001 inches per inch during air quenching. This predictable expansion lets toolmakers pre-compensate dimensions. You achieve final tolerances without extensive grinding.

Nitriding compatibility increases surface hardness beyond 1000 HV (>70 HRC). Surface-hardened H13 tools resist abrasive wear from hot metal flow. They also maintain a tough core that prevents catastrophic cracking.

Practical Application Guidance

Choose H13 for operations that need maximum hardness combined with good toughness balance. The higher molybdenum content gives superior wear resistance in abrasive hot-work conditions like aluminum extrusion.

Select 1.2344 for applications where thermal stability beats peak hardness needs. Its lower molybdenum spec delivers better toughness for tools experiencing severe thermal shock.

SKD61 selection reflects supplier relationships in Asian markets or specific Japanese manufacturing standard compliance requirements. It’s not about performance differences.

All three names perform the same in standard die casting, forging, and extrusion applications. Your choice should match regional material availability and procurement specs. Don’t base it on metallurgical differences.

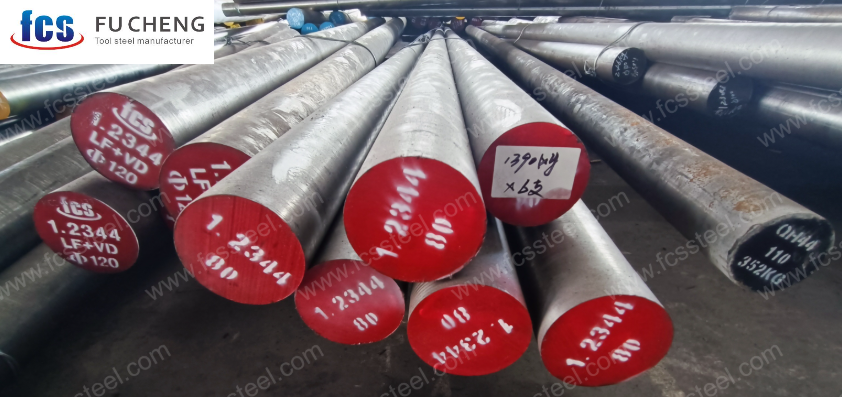

1.2344 Steel: Another Major Equivalent to SKD61

European manufacturers use 1.2344 (X40CrMoV5-1) as their name for the same hot work tool steel.The DIN standard delivers the same metal performance but follows German engineering specs. European manufacturing facilities—especially in automotive tooling and die casting—default to 1.2344. It’s their regional name for this proven 5% chromium die steel.

Composition Precision: The European Approach

1.2344 tightens certain element ranges compared to other versions:

Carbon sits at 0.33–0.41% – This narrower window gives you more predictable toughness than H13’s 0.32–0.45% range. Tighter carbon control means less variation between batches. Toolmakers get consistent heat treatment response every time.

Chromium maintains 4.8–5.5% matching the other standards. This chromium level resists oxidation during molten metal contact. It also drives the air-hardening response.

Molybdenum appears at 0.3–0.5% – Lower than H13’s typical 1.10–1.75% spec. Some European mills produce 1.2344 with molybdenum closer to H13 levels. But the base spec allows reduced amounts. This affects secondary hardening. It boosts overall toughness though.

Vanadium remains minimal or trace amounts in standard 1.2344. Higher-grade versions include vanadium similar to H13. Less vanadium reduces peak hardness potential. But it improves impact resistance.

Manganese ranges from 0.25–0.5%. This supports hardenability without excessive carbide formation.

Mechanical Performance Data

1.2344 delivers mechanical properties that match or exceed its equivalents in specific areas:

Yield strength reaches 1530 MPa. This sits between H13’s 1570 MPa and SKD61’s 1470 MPa. You get adequate structural support for die applications without losing ductility.

Tensile strength spans the equivalent 1200–2050 MPa range shared across all three grades. Working dies operate well within this strength envelope.

Charpy impact values of 24 J surpass H13’s 16 J rating. This 50% improvement in impact toughness makes 1.2344 the better choice for severe mechanical shock loading. Forging dies that absorb hammer blows benefit from this impact resistance.

Elongation measures 13.1% with reduction in area at 50.1%. These ductility indicators fall between H13 and SKD61 values. The material stretches enough to prevent brittle fracture. It maintains die dimensional stability at the same time.

Hardness Characteristics Across Processing States

The annealed hardness matches SKD61 at 229 BHN maximum. This makes 1.2344 easier to machine than H13 before heat treatment. Tool and die shops save machining time during cavity cutting and detail work.

Thermal Management Excellence

Thermal conductivity of 24.3–24.4 W/m-K across the critical 215–475°C operating range ensures efficient heat extraction from die surfaces. This matches H13 and SKD61 thermal transfer rates. Dies dissipate heat fast enough to prevent hot spots. These hot spots speed up thermal fatigue cracking.

Specific heat capacity at 0.460 J/g-°C provides thermal stability during production cycles. The material resists rapid temperature swings. These swings create internal stresses.

Hot hardness retention extends to 700°C through secondary hardening mechanisms. Even with lower molybdenum content in base specs, 1.2344 maintains functional hardness at extreme temperatures. Standard tool steels fail at these temps.

Dimensional Control During Heat Treatment

1.2344 exhibits minimal distortion during air quenching – about 0.0005 inches per inch. This represents half the dimensional change of standard H13 (0.001 in./in.). Complex mold geometries with tight tolerance requirements benefit from this stability. Toolmakers can hold closer final dimensions. No need for extensive post-hardening grinding operations.

The deep hardenability through air-hardening allows uniform hardness in large cross-sections exceeding 300mm. This through-hardening capability supports massive extrusion dies and industrial forging tooling. Oil or water quenching would create unacceptable distortion or cracking risks in these applications.

Fabrication and Processing Advantages

Machinability in annealed condition rates as good – comparable to H13 but better than harder cold-work steels like 1.2343. Carbide cutting tools last longer during 1.2344 machining versus higher-hardness die steel grades.

Weldability proves excellent with proper procedures. Pre-heating to 200–300°C and post-weld annealing eliminates cracking risks. Damaged dies can receive weld repairs and return to service. This extends tooling life. It reduces replacement costs.

Application Selection Logic

Choose 1.2344 for impact toughness over peak hardness. Its 24 J Charpy rating versus H13’s 16 J makes it the clear winner for forging dies experiencing mechanical shock loading.

Select 1.2344 for complex mold geometries where dimensional stability during heat treatment matters. The 0.0005 in./in. distortion rate preserves tolerance without extensive finishing operations.

Specify 1.2344 for European suppliers or DIN standard compliance requirements. Material availability and certification documentation flow more easily within regional chains.

The narrower carbon range delivers batch-to-batch consistency. Quality-critical applications demand this. Aerospace tooling and medical device mold manufacturing benefit from this composition precision.

Applications and Selection Criteria

Factories worldwide use SKD61 equivalent materials for tooling. These tools face extreme heat and mechanical stress cycles. Choosing between H13, 1.2344, and SKD61? It depends on your performance needs, where you buy materials, and what your application demands.

Critical Industrial Applications

Material Selection Decision Matrix

Choose H13 if your operation values easy machining during die fabrication. The 70 machinability rating versus 100 for carbon steel means carbide tooling lasts longer during cavity cutting. Need to repair weld dies? H13 welds well with proper procedures. Aluminum die casting applications that need maximum mold life see real ROI from H13’s optimized composition.

Select 1.2344 for jobs where dimensional stability beats peak hardness needs. The 0.0005 inches per inch distortion during air quenching—half that of standard H13—keeps complex mold shapes intact. European factories benefit from DIN standard compliance. Regional suppliers stock it. The narrower carbon range (0.33–0.41%) gives batch-to-batch consistency. This matters for aerospace and medical device tooling where quality is critical.

Specify SKD61 if you source through Asian chains or meet Japanese manufacturing standards. The 27 J Charpy impact rating—highest among the three grades—gives superior thermal cycling tolerance. Operations in Japan, South Korea, and Southeast Asia find better material availability. Pricing beats importing H13 or 1.2344.

Conclusion

SKD61, H13, and 1.2344 are the same hot-work tool steel, simply labeled differently by region. Their performance is identical, so selection should be based on business needs and supply efficiency, not grade differences. North American plants source H13 fastest from local distributors, European manufacturers shorten lead times with regional 1.2344 mills, and Asian factories save 15–20% by purchasing SKD61 from Japanese or Chinese suppliers. Supplier quality matters far more than the name—look for ISO certification, reliable heat treatment, full test reports, and complete traceability. List all three designations on engineering drawings to prevent shortages and simplify global bidding. Since chemistry and heat response are identical, focus on precise heat treatment, strong die design, and optimized operating settings for best tool life.
