LD Tool Steel
For applications that demand high impact toughness while not sacrificing wear resistance, LD Tool Steel is an extremely economical and reliable choice.If you need a balanced cold work tool steel with both toughness and wear resistance, LD is a dependable solution.
Supply Condition:Annealed,Machined
Available Forms:Round bars,Plates / Flat bars,Custom-cut pieces
Processing Services:Sawing,Rough machining,Custom heat treatment.
Standard Size Range (Availability varies by stock):
- Diameter (Round bar): Φ10 mm – Φ65 mm / Φ70 mm – Φ400 mm / Φ500 mm / Φ600 mm / Φ700 mm.
- Plate/Flat Thickness: 8 – 45 mm / 50 – 500 mm.
- Width: 50 – 1000 mm / 50 – 1500 mm.
- Forged Discs: Up to Ø1200 mm.
Forming Methods:Hot Rolled,Hot Forged.
Surface Finish Options:Black,Grinded,Sandblasted,Turned/Machined/Milled/Bright.
What is LD Tool Steel?
LD Tool Steel is a cold work tool steel developed in China. It features a good balance of toughness and wear resistance, and is often regarded as an improved domestically produced cold work steel grade. Positioned between D2 (high wear resistance but high brittleness) and S7 (high toughness but insufficient wear resistance), it is therefore suitable for applications where both impact loads and abrasion coexist. A prominent characteristic of LD Steel is its strong chipping resistance; its fracture toughness is superior to that of traditional cold work steels. It is widely used in cold stamping dies, shearing tools, and cold forming tools.
LD Tool Steel:Product Specification

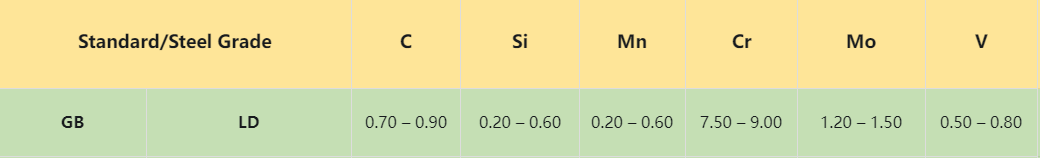

LD Tool Steel:Chemical Composition

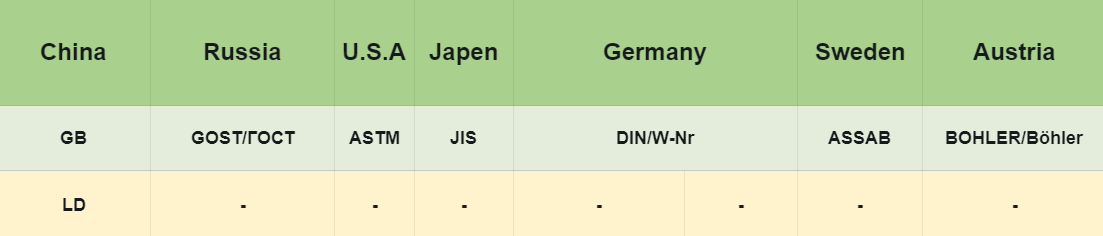

LD Tool Steel:International and grade comparison
LD Tool Steel:Surface Condition

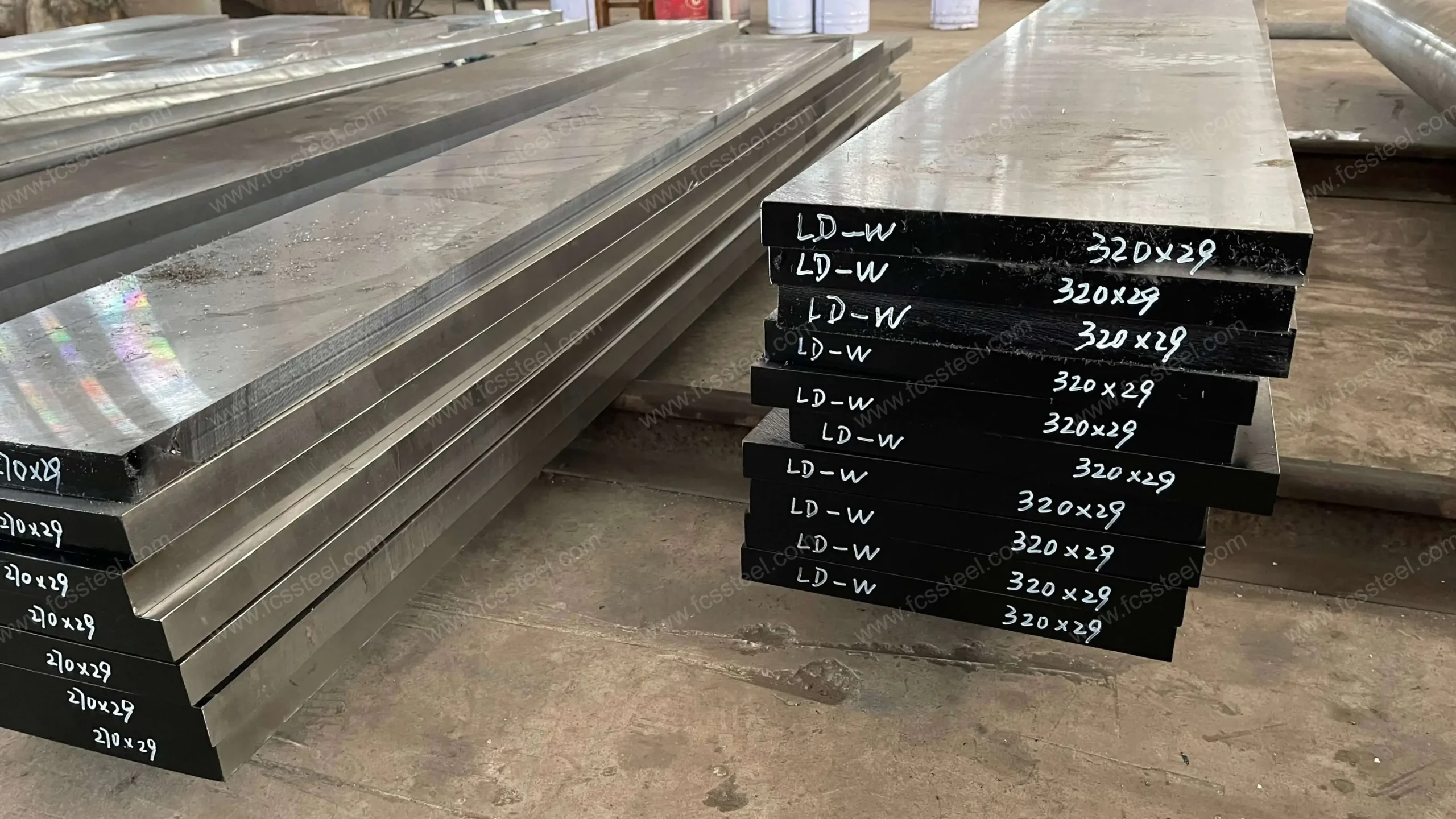

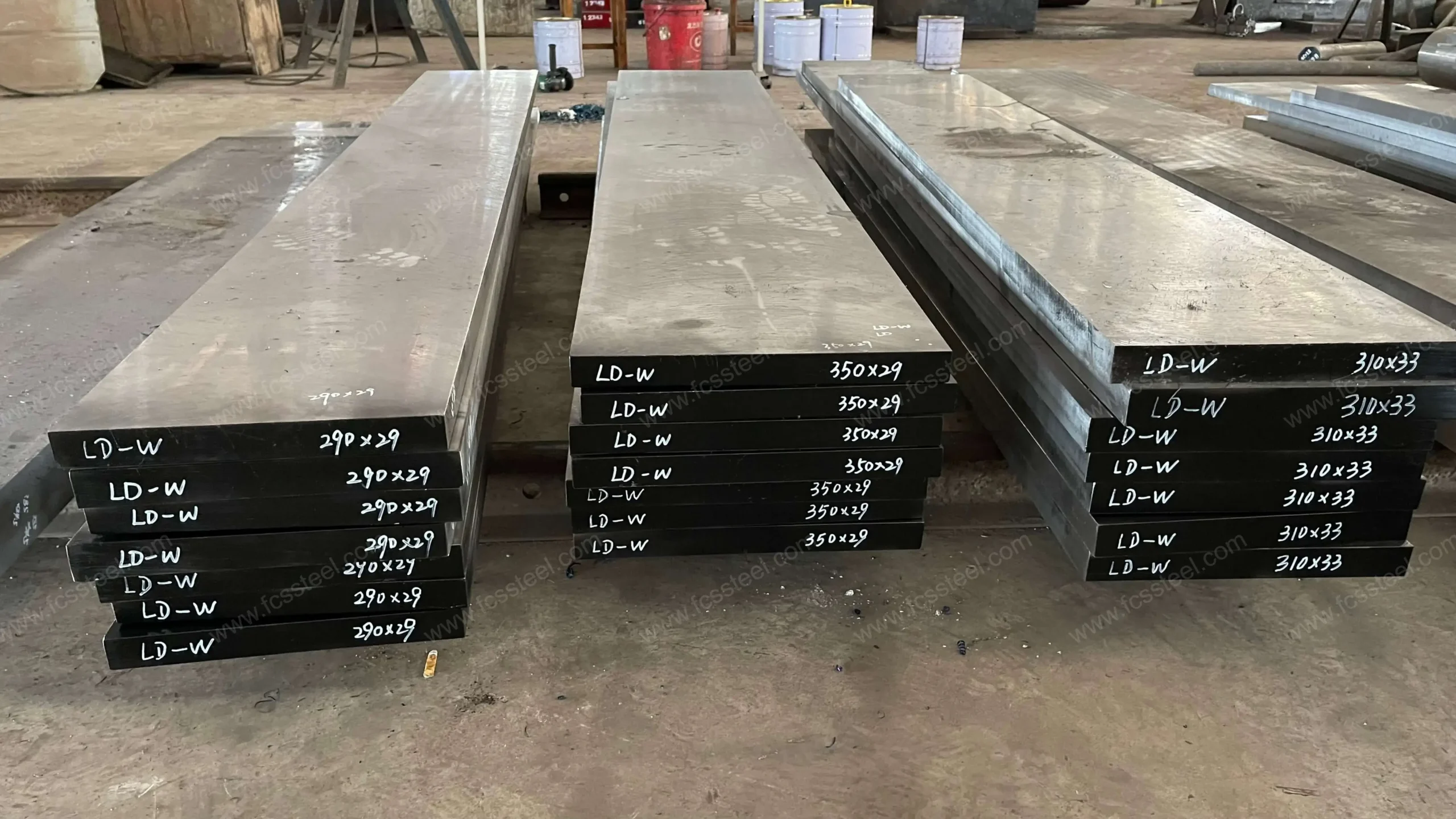

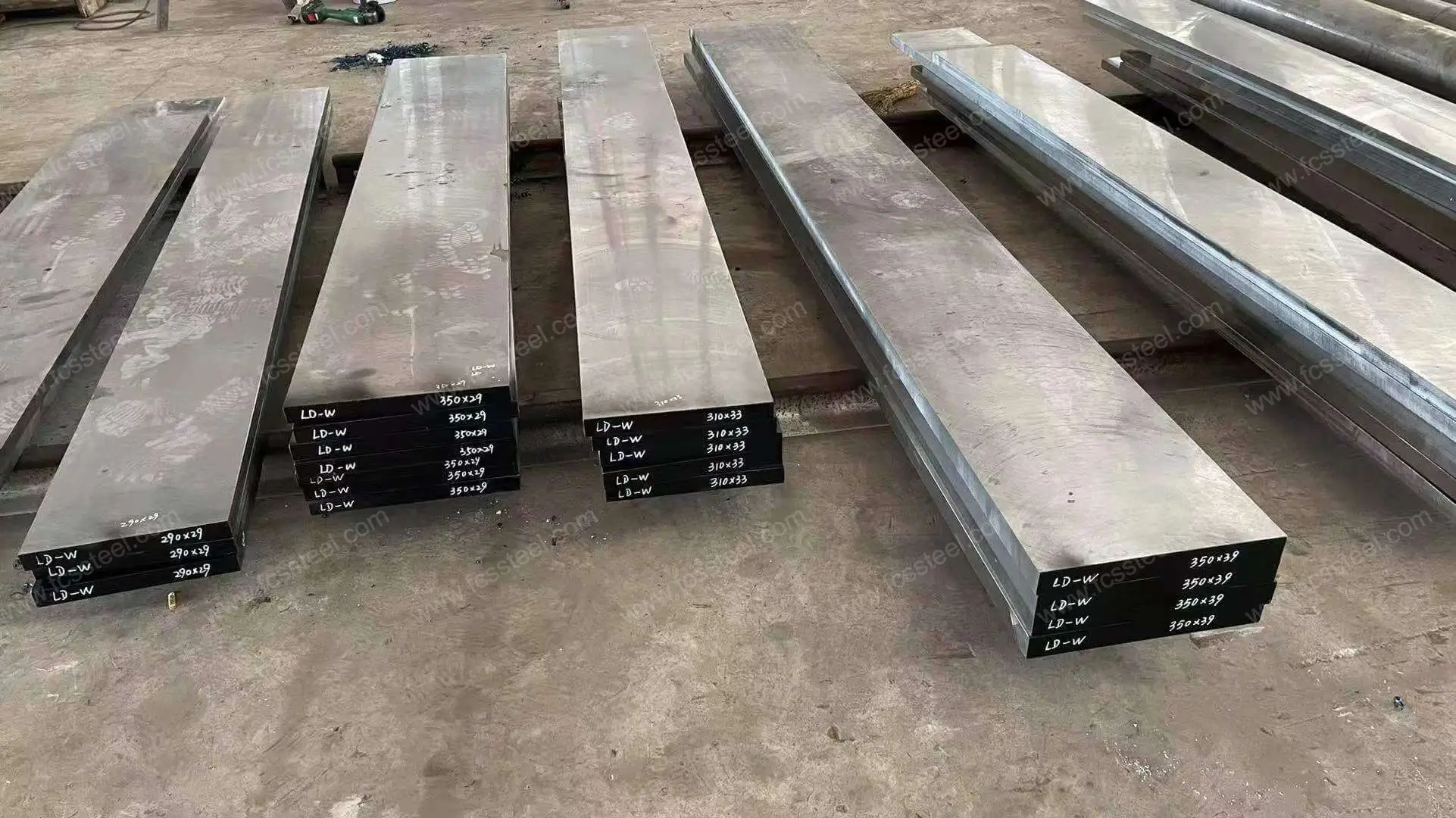

LD Tool Steel:Milled plate

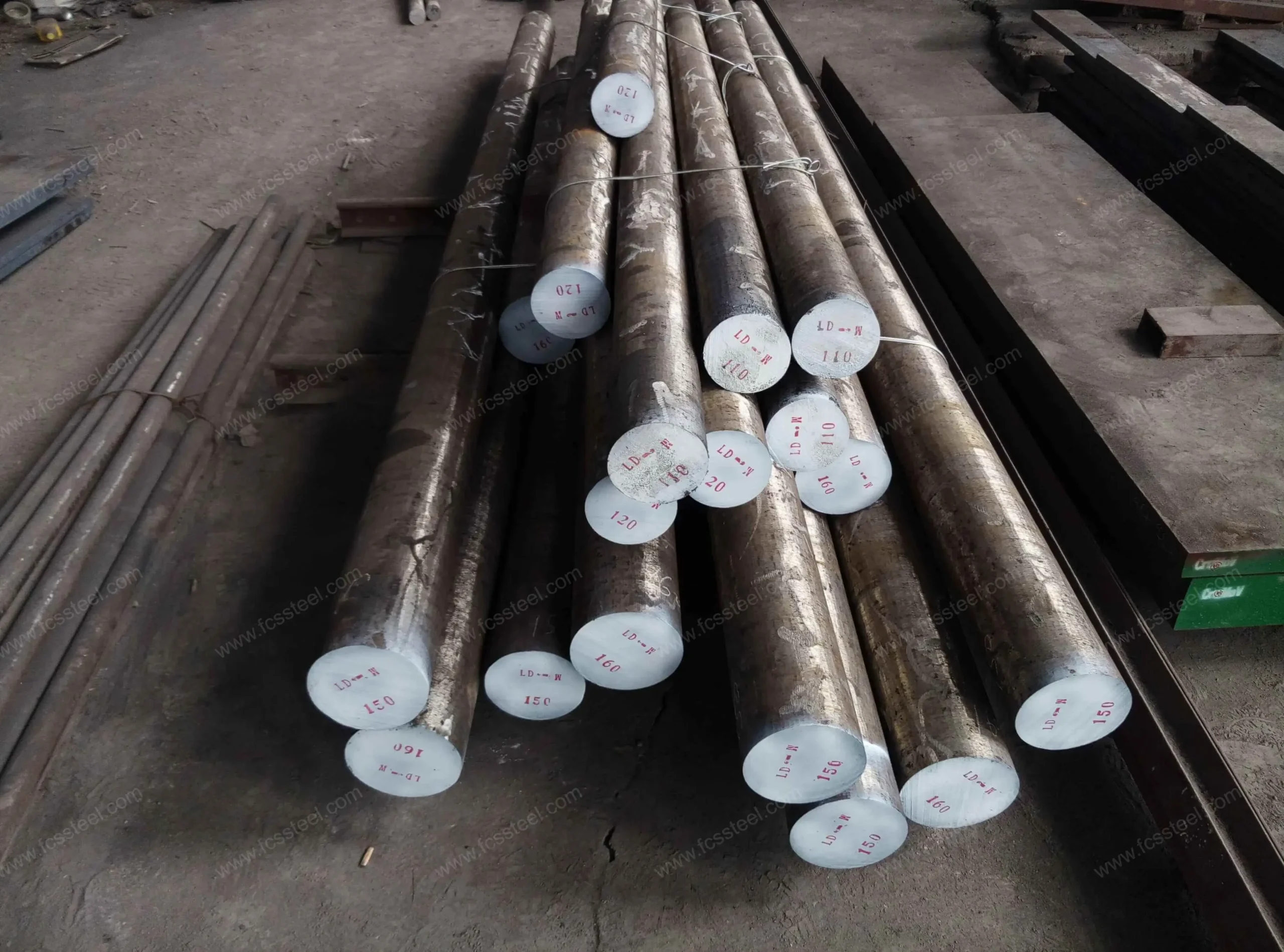

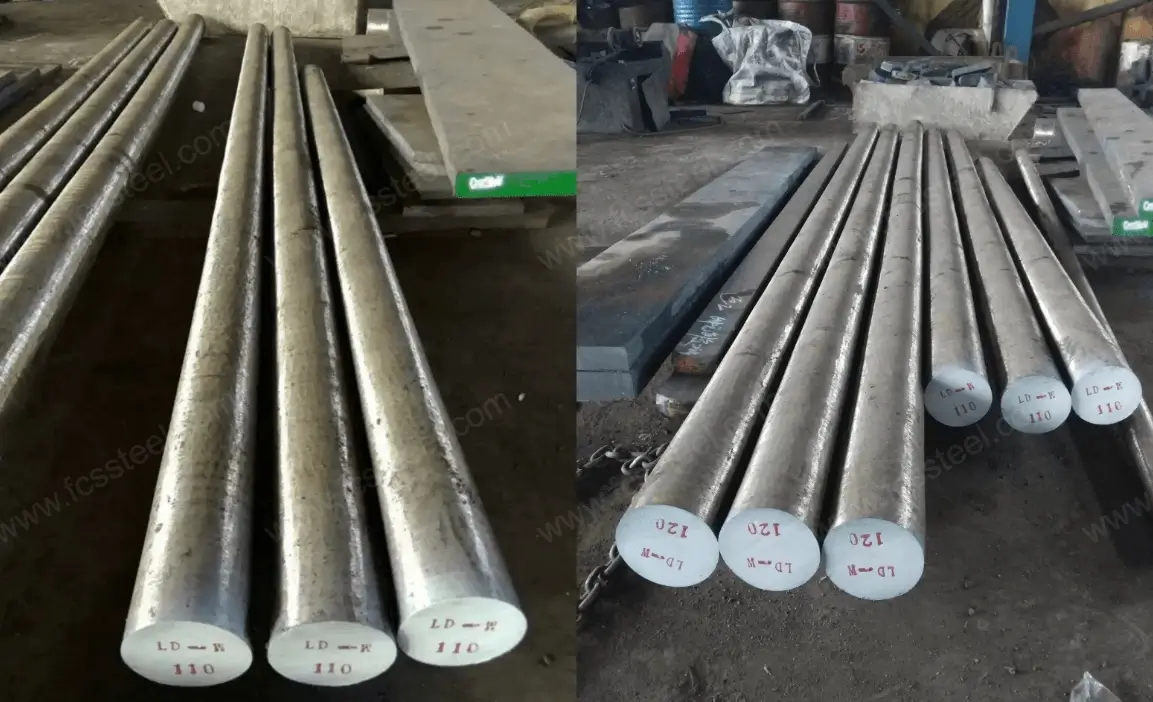

LD Tool Steel:Turned and Peeled Round Steel

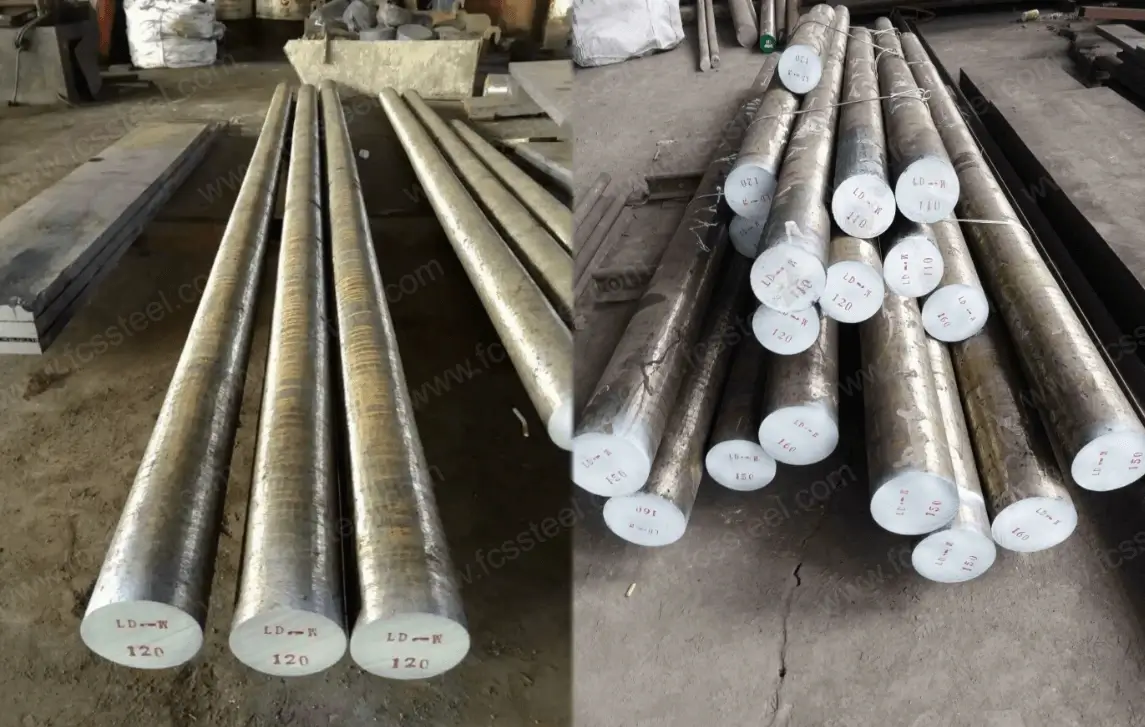

LD Tool Steel:Sandblasted Round Bar
Why Choose LD Tool Steel?
Compared with D2, LD offers higher toughness and chipping resistance; compared with S7, it boasts better wear resistance. As a balanced tool steel suitable for comprehensive cold work applications, it is particularly ideal for dies that need to withstand both impact and abrasion simultaneously.
