H14 Tool Steel

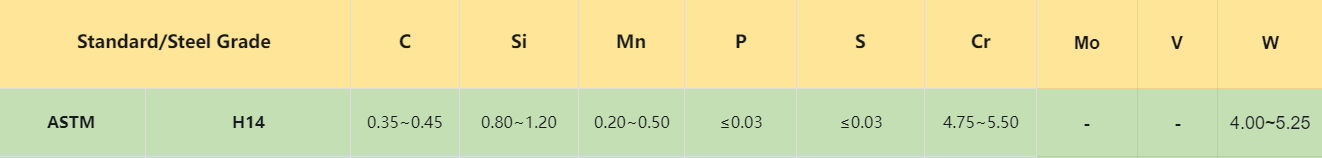

H14 tool steel is a type of hot work tool steel containing 4.75~5.50% chromium, which is enhanced with tungsten to improve its high-temperature performance and heat resistance.

Supply Condition:Annealed,Machined

Available Forms:Round bars,Plates / Flat bars,Custom-cut pieces

Processing Services:Sawing,Rough machining,Custom heat treatment.

Standard Size Range (Availability varies by stock):

1. Diameter (Round bar): Φ10 mm – Φ65 mm / Φ70 mm – Φ400 mm / Φ500 mm / Φ600 mm / Φ700 mm.
2. Plate/Flat Thickness: 8 – 45 mm / 50 – 500 mm.
3. Width: 50 – 1000 mm / 50 – 1500 mm.
4. Forged Discs: Up to Ø1200 mm.

Forming Methods:Hot Rolled,Hot Forged.

Surface Finish Options:Black,Grinded,Sandblasted,Turned/Machined/Milled/Bright.
