3Cr17 Tool Steel

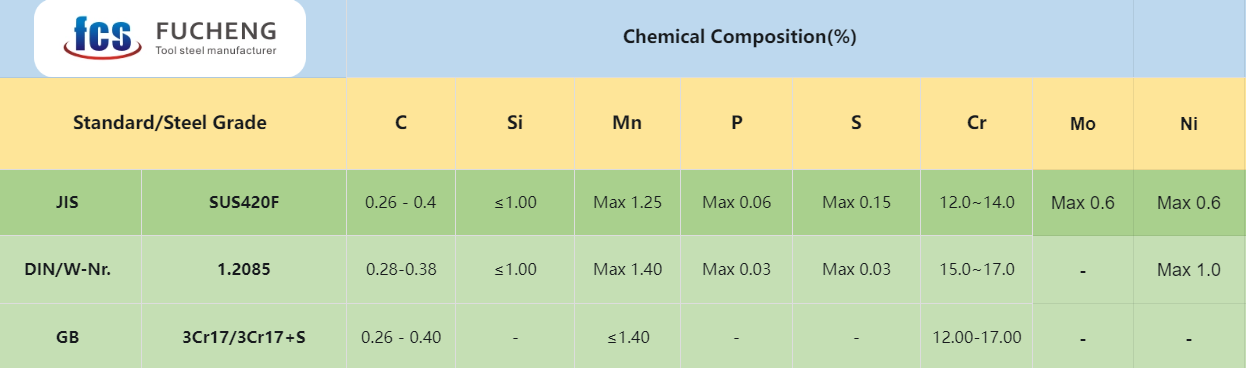

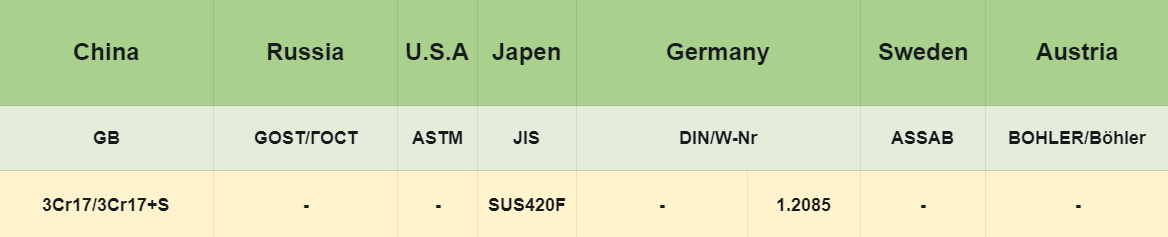

The international approximate/corresponding grades of 3Cr17 Tool Steel include DIN 1.2085 (a common counterpart) and JIS SUS420F (or similar to the 420-series martensitic stainless steels).Common similar designations: 3Cr17, 3Cr17+S (sulfur-containing free-cutting grade).These correspondences are functional approximations, not identical in terms of chemical composition and manufacturing processes. When selecting alternative materials, please compare the chemical composition, hardness, and end-use application.

Process:EF+LF+VD+Hot rolled /Hot Forged+Annealing

Surface condition: Black,Peeled; Polished,Grinded,Sandblasted,Turned/Machined/Milled/Bright.

Delivery condition: Hot Forged,Hot Rolled,Annealed

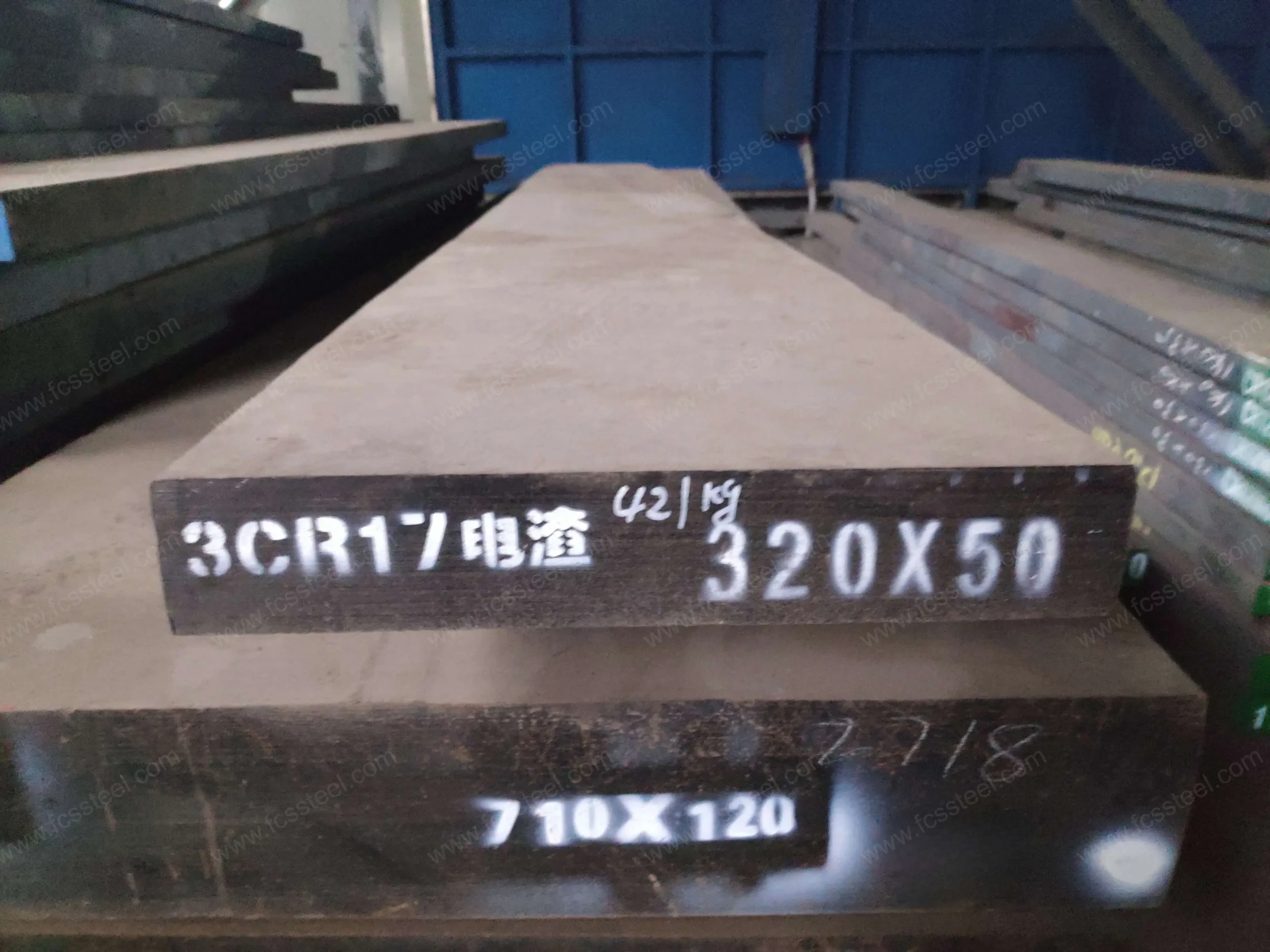

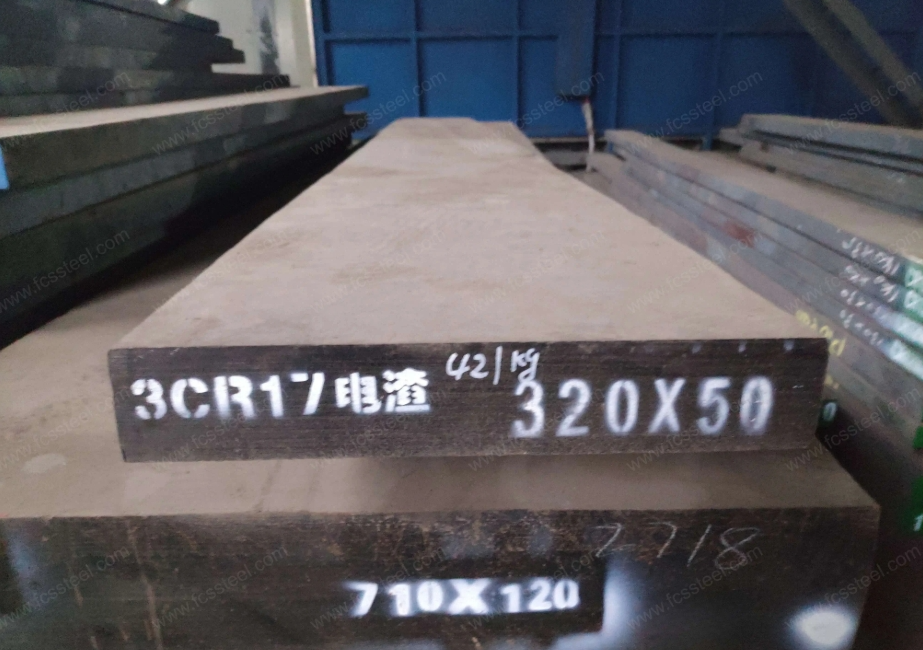

Available Forms:Round bars,Plates / Flat bars,Custom-cut pieces

Processing Services:Sawing,Rough machining,Custom heat treatment.

Payment terms: T/T;L/C

Trade terms: FOB,CIF,CFR,etc..

Standard Size Range (Availability varies by stock):

1. Diameter (Round bar): Φ10 mm – Φ65 mm / Φ70 mm – Φ400 mm / Φ500 mm / Φ600 mm / Φ700 mm.
2. Plate/Flat Thickness: 8 – 45 mm / 50 – 500 mm.
3. Width: 50 – 1000 mm / 50 – 1500 mm.
4. Forged Discs: Up to Ø1200 mm.
