Mastering D6 Tool Steel: How to Fix Microstructural Defects and Stop Die Failure for Good

Introduction: The Invisible Enemy

Most D6 dies fail way too early. The culprit isn’t usually wear—it’s hidden defects like untempered martensite and carbide segregation. These invisible flaws turn reliable tooling into a ticking time bomb.

Stop guessing. This guide addresses the root causes directly. We cover precise chemistry selection, heat treatment protocols that eliminate brittleness, and design tweaks that crush stress. These aren’t just theories. They are field-tested strategies proven to extend die life by 200-300%. Here is how you fix the problem for good.

The Root Causes of Die Failure

Heat treatment problems cause most tool and die failures in the industry. D6 tool steel gets vulnerable fast. Manufacturers skip critical steps or rush the hardening process. This creates serious problems.

Three Main Defects That Destroy Dies

1. Undissolved carbides pose the first major threat. Short austenitizing soak time? Carbide particles larger than 10 μm stay trapped in the steel. These oversized carbides concentrate stress. They create crack starting points under load. Hold time at 980°C falls short? Your die gets weak spots. These spots can’t handle production stress.
2. Retained austenite acts as the second silent killer. This unstable phase causes size shifts over 0.05%. It triggers unexpected cracking during service. Single-cycle tempering leaves this austenite intact. The material then transforms without warning under production conditions. This destroys die geometry and structural strength.
3. Core-to-surface hardness differences show incomplete carbide dissolution. A hardness drop of 3-7 HRC from surface to core? Your heat treatment didn’t penetrate deep enough. Dies show 55-58 HRC at the core. Surfaces reach 60-62 HRC. This gap creates internal stress patterns. These patterns lead to early failure.

Manufacturing Shortcuts Increase Defect Risk

Dies with deep cavities and thin walls trap machining stresses. Skip the 650-700°C stress relief for 2 hours after rough machining? Those internal tensions will crack your die. Rapid heating without 820-850°C preheating guarantees quench cracks. This happens before production even starts.

Sections thicker than 100 mm need 20-50% extra austenitizing time. Standard protocols aren’t enough. The 8-12 hour minimum soak gets complete carbide dissolution through the entire cross-section. Cut this time short? Your core stays soft and weak. This creates the hardness gap that weakens structural strength and speeds up die failure.

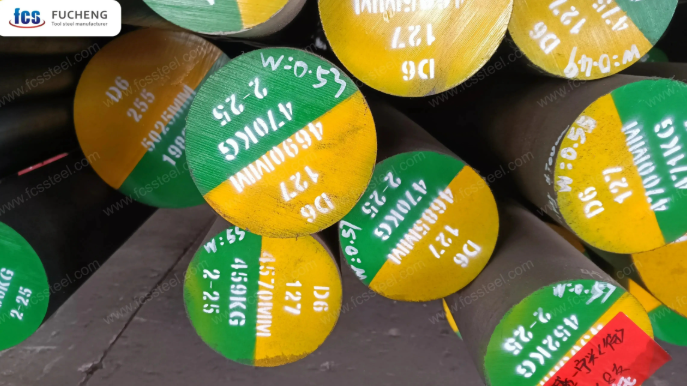

1. Selection: Specifying the Right Chemistry

Defect prevention starts before heat treatment or machining. Your raw D6 tool steel’s chemical makeup decides if your dies succeed or fail. Exact element ratios separate top-grade material from poor stock that hides weaknesses.

Critical Chemical Composition Requirements

High-quality D6 steel needs tight element control:

• Carbon (C): 2.00-2.20% — Creates the dense carbide network for 55-62 HRC hardness. Below 2.00%? You get too few carbides. Above 2.20%? The material becomes too brittle.
• Chromium (Cr): 11.50-12.50% — Gives you wear resistance and deep hardening ability. This range spreads M7C3 carbides evenly through the structure.
• Tungsten (W): 0.60-1.30% — Cuts heat treatment distortion to ≤0.05%. Multi-cavity molds need 0.01mm precision. D6 beats D3 steel because tungsten stabilizes the material.
• Manganese (Mn): 0.20-0.80% — Balances toughness without losing hardness
• Silicon (Si): 0.10-0.40% — Strengthens the base metal and boosts heat treatment response
• Phosphorus/Sulfur (P/S): ≤0.03% each — Keeps the steel pure. Higher levels create defects that start cracks.

Step outside these ranges? You lose both wear resistance and size stability. Request certified mill test reports. Check the chemistry before buying.

Application-Specific Hardness Targets

Different jobs need different hardness after heat treatment:

• Cold forging dies: 58-60 HRC — Balances wear resistance with enough toughness
• Shear blades: 58-62 HRC — Keeps edges sharp under repeated stress
• Aerospace broaching tools: 60-62 HRC — Maximum hardness for extreme wear conditions

D6 holds 58 HRC or higher in work areas below 300°C. This heat stability protects die performance during long production runs.

Performance Benchmarks That Matter

Premium D6 steel gives you real benefits:

Compressive strength hits around 1320 MPa after hardening. The material holds together under pressures past 2000 MPa. This strength stops die collapse during high-force forming work.

Wear life multiplier runs 3-4x versus low-alloy steels. Tool life jumps +40% compared to standard steels. These aren’t sales pitches. Production shops prove these results.

Vacuum heat treatment boosts the fatigue limit. Service life runs 2-3 times longer than standard heat-treated materials. Vacuum processing costs pay back through fewer die replacements.

2. Detection: Finding Flaws Before Cracks

Flaws hide under smooth surfaces. They wait to crack your dies during production. Standard visual checks miss these problems. New detection tech spots what eyes can’t see.

Testing Methods That Don’t Damage Your Dies

• Terahertz inspection (NOTUS technology) scans steel without touching it. It finds rust and particles below the surface. The accuracy goes down to micron layers. This stays 100% non-destructive. Your dies get tested. No damage happens. No changes occur. Terahertz waves show hidden gaps and weak spots before cracks start.
• X-ray detection with sub-pixel analysis finds smaller flaws than standard methods. Add deep learning algorithms? Flaw recognition gets better. The system spots pits, pinholes, and edge cracks. These mean brittleness. They cause dies to break under heavy stress during forming.

AI Vision for Surface Checks

Modern AI vision systems hit 99.9% accuracy on steel surfaces. They spot scratches, rust scale, blisters, and roll marks at micron-level detail. These systems use:

• Low-angle directional lights to find scratches
• Multi-angle cameras for top, bottom, and edge views
• Pixel-level mapping that measures defect size
• Heat maps that show where stress builds up

You can set up these systems in four weeks. Week one: install hardware. Week two: collect images and train the model (1-2 hours total). Weeks three and four: run tests next to manual checks before switching to autonomous mode.

3. Heat Treatment: Eliminating Brittleness

Heat treatment defines D6 quality. Miss a step? Your tools become brittle. Use these exact numbers to stop hidden defects and prevent early breakage.

4. Machining: Speed Without Surface Burns

Refined carbides let D6 machine 40% faster than D2. But watch out. Speed creates friction heat. This heat forms brittle “burned” zones. These hard spots crack under load. Protect your die surface with these rules:

1. Keep Feeds Low: Working with annealed D6? Speed won’t ruin the finish, but the feed rate will. Keep it at 0.11-0.44 mm/rev. Mix high speed with shallow cuts. You get the smoothest results this way.
2. Match Your Grinding Wheel: Follow the “inverse rule.” Pick a hard wheel for soft (annealed) D6. Switch to a soft wheel for hardened D6. This stops glazing. Plus, it avoids dangerous heat buildup.
3. Watch Grain Size: Stay in the 24-100 mesh range. Coarser grains cut cooler. Fine grains might look nice. But they raise the burn risk on hardened surfaces.
4. Hard Milling Strategy: Cutting at 62 HRC? Use button (round) inserts with T-land edge prep. Standard sharp edges chip fast. Round geometry spreads the force out.

5. Design: Engineering Out Stress

Sharp corners destroy dies faster than wear. Small shape tweaks in D6 parts cut stress significantly. Try these engineering fixes. You stop cracks before they start:

1. Boost Fillet Radii: 0.01″ is too small. Go for 0.08″. This change drops peak stress by 77%. You go from ~14,000 down to ~3,900 psi. It costs nothing. It saves everything.
2. Watch the D/d Ratio: Keep size changes below 2:1. Sudden stiffness shifts multiply stress. Need a bigger step? Use gradual tapers.
3. Use Relief Holes: Drill these near slits and sharp angles. They break up stress paths. Loads shift to the stronger sections of the die.
4. Thicken Deflection Zones: Beef up your flanges. Thicker sections cut bending stress. You get less fatigue cycling during high-volume runs.
5. Fight Thermal Shock: D6 hates fast temp changes. Preheat to 650-705°C before hardening. Use deep cryogenic treatment next. This handles retained austenite.

6. Maintenance: Extending Service Life 3X

Production records prove D6 tool steel delivers measurable life extension with proper maintenance. Cold forging dies reach 100,000+ pieces per die at 58-60 HRC hardness. Drop forging applications push past 300,000 cycles at 60-62 HRC. High-volume stamping operations report 40% die life increase versus D2. This saves $75,000 per year in tool replacement costs alone. One automotive manufacturer documented this exact figure on door hinge stamping dies.

Critical Maintenance Factors That Triple Performance

1. Lubrication protocol matters more than most shops realize. Proper die lubrication combined with correct hardness selection delivers the 100,000-piece benchmark. Skip this step? Surface friction speeds up carbide pullout. Die life drops by half.
2. Monitor dimensional stability each week. D6 changes less than 0.05% after tempering with proper heat treatment. Measure critical dimensions every 10,000 cycles. Shifts beyond 0.05% signal retained austenite transformation. They also indicate incomplete tempering.
3. Track hardness uniformity across working surfaces. Through-hardened D6 maintains 55-62 HRC consistency from surface to core. This uniformity prevents distortion issues that plague case-hardened steels. Spot-check hardness each month using portable testers. Core-to-surface variations exceeding 2 HRC indicate heat treatment problems. These require immediate attention.

7. Upgrades: When to Switch Steels

D6 gives you extreme hardness, but it lacks toughness (only 28.0 J impact rating). If your dies snap under shock loads rather than wearing out, you need to switch.

Mixed Loads? Use D2 (1.2379).
It balances wear resistance with better impact strength. Pick this if D6 chips during production runs with changing forces.

Heavy Shock? Use S7.
Essential for drop forging. It absorbs the sudden hits that shatter D6 instantly. You trade some wear life for dies that actually stay in one piece.

Budget Sensitive? Use A2.
It machines easier and costs less. Best choice when you need impact toughness more than extreme dimensional stability.

High-End Performance? Use PM M4.
The “best of both” option. Powder metallurgy gives you D6-level wear resistance plus toughness. Great for expensive aerospace tools, though it costs more upfront.

8. Case Studies: Real-World Fixes

Real-world use shows that specific steps change how D6 tool steel performs. Check out these three success stories:

Eliminating Quench Cracks:

An automotive supplier had door hinge dies crack too soon. They added a simple 650-700°C stress relief step and controlled the preheat. This stopped the failures. Die life jumped from 65,000 to 110,000 parts. That saved the company $45,000 a year.

Stabilizing Dimensions:

Cold forging punches failed because they grew 0.08% during production. The shop switched to triple tempering at 520-530°C. This stabilized the martensite and cut growth to a safe 0.02%. Service life shot up by 733%. It reached over 100,000 cycles.

Stopping Edge Chipping:

An aerospace shop saw broaches chip after just 200 cuts on titanium. They lowered the austenitizing temperature to 980°C. This stopped grain coarsening. The result? Tool life hit 2,400 cuts—an 1,100% improvement. Even NASA backs D6’s long-term value. They use thermal spray techniques to fix worn surfaces instead of scrapping them.

Conclusion:

Die failures aren’t bad luck. They are engineering problems. You can solve them. You have the roadmap now. Audit your D6 heat treatment logs. Look for skipped stress relief. Check for incomplete tempering. You need to fix these gaps today.

Use non-destructive testing. Find hidden flaws before they shut down your production line. Optimization might not work. So, upgrade your materials. The cost of doing nothing is too high. Don’t wait for the next break. Engineer your dies so they last.
