P6M5 Tool Steel

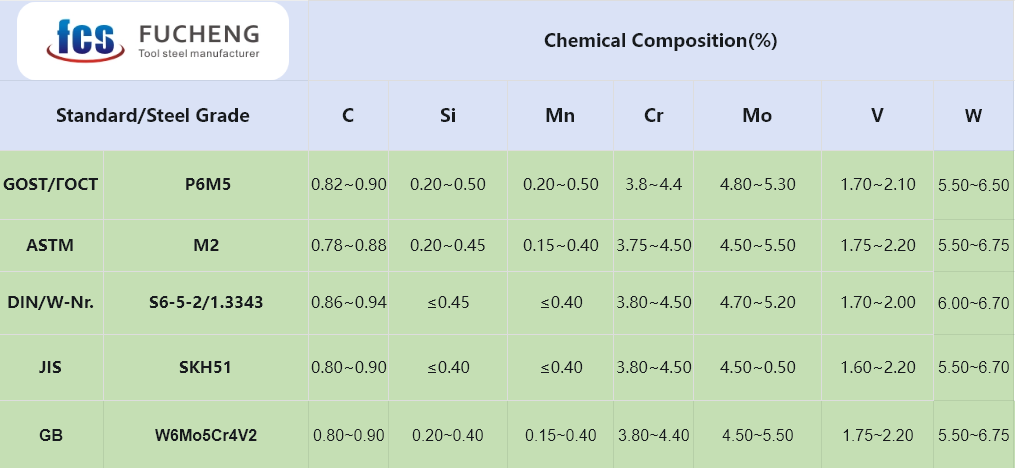

P6M5 Tool Steel Chemical Composition

P6M5 Tool Steel Equivalent Grades

The approximate correspondence of P6M5 in the standards of various countries is as follows:

1. Russia (GOST):P6M5 tool steel
2. China (GB): W6Mo5Cr4V2 tool steel
3. Germany (DIN / W-Nr):S6-5-2 tool steel
4. Japan (JIS): SKH51 tool steel
5. USA (AISI/ASTM):M2 tool steel
6. Sweden (ASSAB): HSP41 tool steel
7. Austria (BÖHLER): S600 tool steel

P6M5 Tool Steel Specifications

P6M5 Tool Steel Customized Options

1. Custom Surface Conditions: Black; Sandblasted; Grinded; Turned/Machined/Milled/Bright
2. Custom Chemical Composition: Capable of producing standard grades such as GB, DIN, ASTM, JIS, etc. Chemical composition can be custom-produced individually.
3. Custom Specifications: Round steel (diameter) and plates (thickness, width) can be custom-produced.
4. Professional packaging for long-term storage or extreme transportation conditions: Including black paint spraying on all sides, plastic film wrapping, anti-rust oil spraying, and delivery in wooden cases.
5. Custom production according to samples or technical agreements.
6. P6M5 Tool Steel Electroslag Remelting (P6M5 ESR): Premium option with higher purity and isotropic properties for critical applications.

P6M5 Tool Steel Smelting process

P6M5 Tool Steel Physical Properties

1. Density is approximately 7.85-8.14 g/cm³;
2. Elastic modulus approximately 207 GPa;
3. The coefficient of thermal expansion is approximately 12×10⁻⁶ /K;
4. The thermal conductivity is approximately 20-25 W/m·K

P6M5 Tool Steel Mechanical & Performance Properties

1. Red hardness: Maintains hardness at high temperatures and is suitable for high-temperature cutting.
2. Wear resistance: It contains tungsten, molybdenum and vanadium carbides commonly found in high-speed steel, providing strong wear resistance.
3. Toughness: Superior to tungsten type, it strikes a balance between hardness and toughness.
4. Hardness range: Up to HRC 58-64 after heat treatment.
5. Machinability: Good machinability in the annealed state.

P6M5 Tool Steel Product Applications

1. 1. Cutting tools: such as milling cutters, drill bits, taps, saw blades, etc.
   2. Mold components: end milling molds, die-casting molds, hot stamping molds.
   3. Cold stamping/hot stamping tools: such as punches, cold working dies, shearing tools.
   4. High-wear parts: such as gears, rollers, and shafts.
