Tool steels are the backbone of precision manufacturing, and SKS3 tool steel has long been a popular choice for applications like stamping dies, punches, and small-batch production molds due to its balanced hardness, wear resistance, and reduced quenching distortion. However, competing materials are increasingly challenging its dominance. This article explores the top 5 alternatives to SKS3 tool steel, comparing their performance, cost, and suitability for industrial applications.

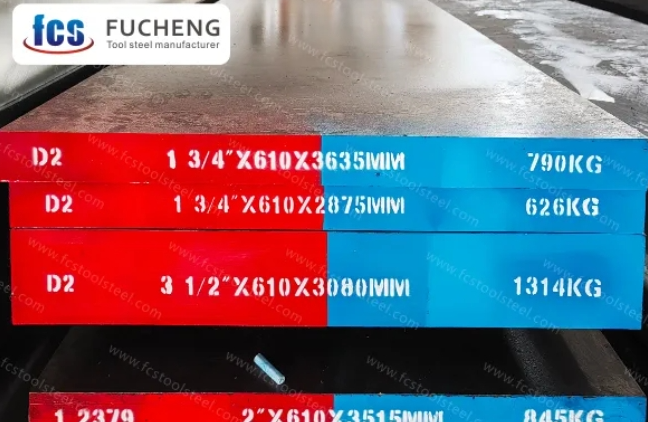

D2 Tool Steel: Performance and Cost
From my experience, D2 tool steel is a standout material. It’s a high-carbon, high-chromium tool steel that hardens in air. People know it for its toughness and ability to hold an edge. It contains 12% chromium. This gives it about three times the wear resistance of standard carbon steels. That’s why I see it often used as a benchmark in industries needing high wear resistance and precision.
Physical & Mechanical Properties of D2 Tool Steel
| Property | Value |
|---|---|
| Density | 7,700 kg/m³ (0.278 lb/in³) |
| Melting Point | 1420°C (2590°F) |
| Elastic Modulus | 210 GPa |
| Thermal Conductivity | 20.0 W/m·K at 20°C |
| Specific Heat Capacity | 460 J/kg·K |
| Yield Strength | 1,300 MPa |
| Hardness | Up to 62 HRC after heat treatment |
| Machinability | 27% (compared to AISI 1112 steel). This makes it tricky for complex machining jobs. |
| Magnetism | Curie point at 767°C |
Key Features & Advantages
Based on my work with it, here’s what I appreciate about D2:D2 offers excellent wear resistance. It keeps a sharp, precise edge even under stress.It isn’t stainless steel, but the 12% chromium gives it decent resistance to rust.D2 changes very little during heat treatment. I find this vital for precision tools and dies. It helps manufacturers do less machining after heat treatment.It has high tensile strength after heat treatment. This supports demanding uses like die cutting and metal forming.
D2 Tool Steel Pricing Insights
Because D2 has high alloy content and is hard to machine, it usually costs more than simpler tool steels. D2 is 15–25% more expensive than SKS3, justified by its longevity in high-stress environmentsIn my opinion, its long life and the fact that you replace it less often can make up for the initial cost. This is very true in jobs where wear resistance is the main goal.
Evaluation: How Does D2 Compare to SKS3 and Others?
I recommend D2 when top wear performance and holding shape are critical. If you compare it to SKS3, D2 offers better wear resistance and hardness. However, it costs more and is harder to machine. If your main concerns are tool life and precision, I believe D2 is a strong contender, even with the higher initial cost.
A2 Tool Steel: Properties, Uses, and Value
I’ve grown to appreciate A2 tool steel for its great balance of features. Working with different metals over the years, I’ve found A2 is like a dependable friend. I know I can count on it. It offers good wear resistance and stays tough enough for difficult tasks. I remember my first A2 project clearly. After heat treatment, it showed almost no distortion, which really satisfied me. That experience proved its excellent size stability.
Since it’s an air-hardening, cold-work steel, it fits easily into my process. I don’t need specialized tools to work with it. I think of it as sitting between other steels I use. It seems more capable than simple O1 steel but costs less than D2. Touching a correctly finished piece of A2, I feel confident in its structure. It delivers performance that provides a solid mix of quality and value, which I recommend.
Key Features & Benefits
This means less warping and shape change when heat treating.It resists wear better than O1. I find it cheaper and easier to machine compared to D2.Maintains hardness deep into the material, not just at the surface.Resists bending or squashing well under heavy loads.It keeps its exact size after hardening. This is critical, in my view, for tools needing tight tolerances.
A2 Tool Steel Price & Value Insights
I usually find A2 steel priced between O1 and D2. I think it’s a good value if you need better wear resistance than O1 but don’t need the top hardness (and higher cost) of D2. Because it’s easy to machine and doesn’t warp much, you save money making the tool and finishing it after heat treatment.
Comparison: How Does A2 Compare to SKS3 and Others?
I suggest A2 if you need a tool steel that’s tough, warps less, and is easier to work with than D2. Thinking about SKS3 tool steel? I often see people choose A2 when they need tight tolerances and a mix of toughness and wear resistance. It serves people who want solid performance but want to avoid the high price and brittleness of steels with extreme wear resistance.

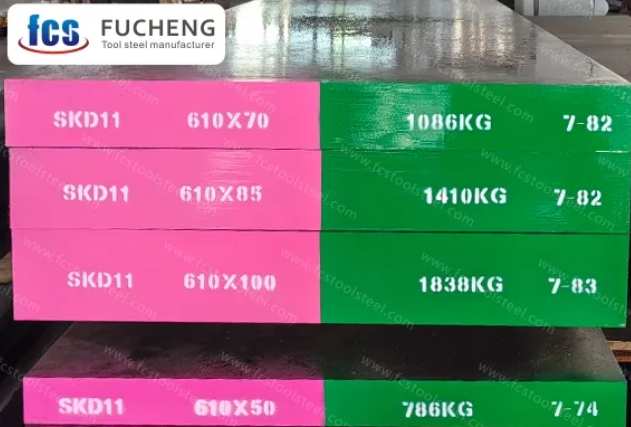

SKD11 Tool Steel: Performance, Features, and Value
SKD11, a cold-work tool steel with higher chromium (Cr: 11–13%) and molybdenum (Mo: 0.7–1.2%) content, offers superior wear resistance and toughness compared to SKS3. Its fine carbide structure ensures minimal distortion during heat treatment, making it ideal for high-volume production molds and dies. SKD11 achieves a hardness of HRC 58–62, similar to SKS3, but outperforms in abrasive environments due to enhanced carbide distribution.
Price & Value Assessment
SKD11 costs 20–30% more than SKS3, driven by its complex alloy composition and extended tool lifespan in heavy-duty applications.SKD11 costs more upfront than simpler tool steels. But in my experience, it’s worth it. Its excellent wear resistance and stable shape provide real value over time. I find you’ll spend less money replacing tools and have fewer stops in production. This makes SKD11 a cost-effective choice if you need tools to last long and work reliably.
My Evaluation: Is SKD11 Worth the Premium?
I strongly recommend SKD11 tool steel if you need high hardness, great wear resistance, and accuracy in shape. Do you want less downtime and fewer tool replacements? Need long production runs that stay precise? Based on my experience, SKD11’s higher cost pays off in tough industrial settings. I think its mix of properties makes it a top choice for cold work dies, molds, and any job where you absolutely need top performance and precision.
S7 Tool Steel: Top Shock Resistance, Properties, and Why I Rate It
If you need a tool steel that can take a real beating, I think S7 tool steel is a standout performer. It’s designed to resist shock and hardens in air. This makes it great for tools that get hit hard and suddenly. When a job involves repeated hammering, S7 is often my go-to choice.
Key Features & Advantages I See
S7 handles sudden, repeated impacts very well. Its Charpy impact values (20–30 J) are among the highest for tool steels.Cooling in air means less warping during heat treatment. I find this is a big help for keeping tight sizes on important tools.I find S7 much easier to work with than many other alloy tool steels. This makes it a good choice for parts needing a lot of work after heat treatment.S7 stays hard, above 45 HRC, even at 500°C. Tools keep their edge and strength whether working hot or cold.It arrives ready for machining. This cuts down prep time and gets production moving faster.
S7 Tool Steel Price & My Value Thoughts
S7 costs more than basic tool steels like O1. However, its price is usually lower than super-hard or premium die steels. In my experience, customers get their money’s worth back before long. Tools made from S7 last longer. They don’t need replacing as often, particularly in machines that involve high impacts or wear.
Quick Comparison: How I See S7 Stacking Up
Shock Resistance: It beats most common tool steels, like SKS3, easily.Hardness at Heat: It holds its hardness up to 500°C better than general steels.Machinability: It’s much easier to machine than high-alloy types like D2 or some other shock-resistant steels.
My Evaluation: Is S7 the Right Choice for You?
If you need top impact toughness, minimal warping, and good machinability, I think S7 is hard to beat. For punches, dies, or blades taking hard hits – and needing some heat resistance – I suggest looking at S7. Its blend of properties offers reliability and durability. I believe it provides solid value in demanding jobs.
H13 Tool Steel: High Heat Performance, Applications, and Value
Based on my years working with high-performance steels, I find H13 tool steel acts like strong armor in tough industrial jobs. I’ve seen H13 hold up when other steels fail. It keeps its shape and strength even up to a scorching 600°C. From my experience, its strength comes from a great mix of vanadium (V: 0.8–1.2%) and molybdenum (Mo: 1.2–1.6%). I believe this combination gives it amazing resistance to heat-related stress and wear.
When I put H13 next to SKS3 in the workshop, the difference is clear. During repeated heating and cooling cycles, H13 stays tough. Other steels often lose their hardness under these harsh conditions. Because it’s so tough through these cycles, I strongly recommend H13 for die-casting projects and extrusion molds. I think once you see how well it performs under pressure, you’ll understand why I suggest it.
Performance and Toughness in Real Use
H13 fights off cracking caused by quick temperature changes. This helps tools last longer in die casting and forging.It keeps its shape under heavy friction and shock. This reduces the need for repairs and minimizes downtime.Top-quality H13 grades come from special refining (like AOD or VAR). They have very clean microstructures. I recommend these for demanding aerospace or critical die-casting uses.
Comparative Value and Pricing Insights
In my experience, H13 performs better than standard alloy steels like 4140. It shows better wear resistance and holds its structure better at high temperatures. Yes, its initial cost is more than basic cold work steels. However, I think the investment pays off because you get: – Much longer die life – Fewer replacements and less unexpected downtime – Better results in high-volume, high-heat tasks
Real-World Example: Let me share an example. A factory switched to H13 dies instead of lower-alloy ones. They reported their H13 dies lasted much longer. They had fewer production stops from heat cracks. The dies also warped less, even after long periods of use at 500–540°C. The savings from fewer delays and tool replacements showed a clear value advantage. I suggest considering this benefit.
Expert Opinion:
“Based on my 20+ years working with tool steels in aerospace and precision manufacturing, I find this comparison very helpful for engineers and toolmakers. SKS3 is reliable, but based on my experience, these other options offer unique benefits for certain jobs. For example: * D2 is great for wear resistance. * A2 gives you balanced performance. * SKD11 provides top-tier durability. * S7 handles impacts very well. * H13 has unmatched thermal stability. What I believe is most important is choosing the right tool steel goes beyond the technical specifications. You need to understand your specific manufacturing process needs. Yes, alternatives like SKD11 or D2 might cost 15-30% more upfront. However, I often see this leading to big savings later. This comes from longer tool life and less production stoppage. I always recommend clients look at the total cost over the tool’s life, not just the material’s initial price.”
———— Dr. James Wilson , Principal Metallurgist at Advanced Materials Institute and former Technical Director at Precision Tool Manufacturing Association
summary
After checking out other options instead of SKS3 steel, I learned how crucial it is to pick the right tool steel for what you need to do. Each type has its own benefits.I find D2 one is great for keeping a sharp edge.A2 offers a good mix of features, a balanced choice in my view.If you need toughness and long life, I recommend SKD11.Based on my experience, S7 is excellent for absorbing shocks.This steel handles high heat very well.I’ve worked with these steels for years. I learned that spending a bit more on high-quality tool steel at the start usually pays off. From my perspective, it leads to big savings over time because tools last much longer and you have fewer interruptions in your work. Choosing the best steel isn’t just about looking at the numbers on a spec sheet. I believe it’s about really knowing your own work process and thinking about the total cost over the life of the tool.
