Have you ever found welding 100MnCrW4 tool steel difficult? I know it’s recognized for being tough and durable, but these qualities also create real welding challenges. If you’ve experienced cracks or strange hardness changes after welding, trust me, many others have too. From what I’ve seen, most instructions overlook a simple, yet very important, detail. This detail is essential for creating a strong weld that lasts.
Introduction to 100MnCrW4 Tool Steel
I think 100MnCrW4 tool steel is quite interesting. You might also know it as 1.2510 or AISI O1. It’s a common cold-work tool steel. People like it because it’s very hard and tough. It also resists wear very well. Based on my experience, it follows the ISO 4957 standard. This means you can use it for industrial jobs that need tools to be strong and exact.
Chemical Composition of 100MnCrW4 Tool Steel
| Element | Composition Range |
|---|---|
| Carbon (C) | 0.95% – 1.1% |
| Chromium (Cr) | 0.5% |
| Manganese (Mn) | 1.1% – 1.2% |
| Tungsten (W) | 0.5% |
| Silicon (Si) | 0.2% – 0.3% |
| Vanadium (V) | Trace amounts |
Pre-Welding Preparation for 100MnCrW4 Tool Steel
I believe that preparing 100MnCrW4 tool steel correctly before welding is very important. This helps you get strong welds without flaws. It also reduces the chance of cracks or unwanted changes in the steel’s structure.
Cleaning and Surface Preparation
I always start by removing all contaminants from the workpiece. This includes dirt, grease, oil, and rust.Based on my experience, using wire brushes, solvents, or abrasive blasting gets the surface properly clean.Good cleaning stops weld problems like porosity. It helps the metals join together well.
Preheating the Workpiece
I suggest heating the steel evenly before welding. This lowers heat stress and helps prevent cracking.I recommend a preheating temperature between 250°C–538°C (400°F–1000°F). The best temperature depends on how thick the section is and the exact steel composition.Ensure you heat the part gradually and evenly. This helps avoid warping or thermal shock.
Normalization and Stress Relieving
You can normalize the steel by heating it above its critical temperature. Then, let it cool in still air. I find this improves grain evenness and relieves stress from machining.For 100MnCrW4/O1 tool steel, here’s what I do:Heat it to 650°C (1200°F). Hold it at this temperature for 2 hours.Let it cool at a controlled rate down to 500°C (930°F). Then, let it air cool to room temperature.I recommend stress relieving after rough machining, grinding, or if it has been welded before.
Practical Examples
For instance, an operator cleans a tool steel die with acetone and a wire brush. They preheat it in a furnace to 350°C. After welding, they stress-relieve it. This stops cracks from forming along the weld seam.Another example: A machined 100MnCrW4 tool gets annealed before repair welding. After annealing, it is normalized. This results in an even grain structure and better mechanical properties.

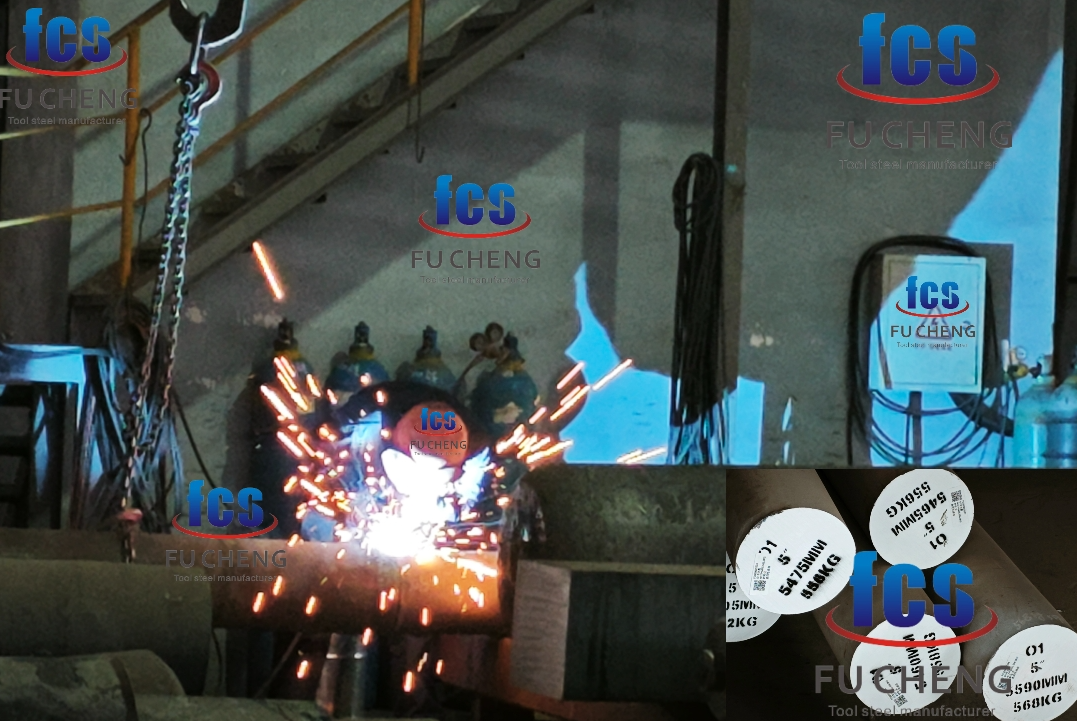

Suitable Welding Methods for 100MnCrW4
When you choose a welding process for 100MnCrW4 tool steel, I suggest you look at several factors. Consider the steel’s hardness and how thick the section is. Think about whether you are doing a repair or building something new. Also, determine the properties you want in the final weld.
Based on my experience, the best welding methods for 100MnCrW4 are manual arc welding, conventional fire-welding, and TIG welding. Each method has specific needs for heat input and how you control the process.
| Welding Method | Key Features | Best For | Shielding Gas/Filler Material | Process Parameters | Advantages/Limitations |
|---|---|---|---|---|---|
| Tungsten Inert Gas (TIG/GTAW) | Precision, low heat input, high-quality finish | Thin sections (≤5 mm) | Shielding Gas: Pure argon Filler: AWS ER80S-D2 (low-hydrogen, high-toughness) |
Heat Input: ≤1.5 kJ/mm Polarity: DCEN (typically) |
Advantages: Excellent control for intricate welds. Limitation: Slower than MIG for thick materials. |
| Metal Inert Gas (MIG/GMAW) | High deposition rate, semi-automatic process | Thicker sections (≥10 mm) | Shielding Gas: Argon-based mixtures Wire: ER70S-6 (low-hydrogen, general-purpose) |
Interpass Temperature: ≤250°C Wire Feed Speed: 5–15 m/min |
Advantages: Fast and efficient for production welding. Limitation: Requires clean surfaces to avoid porosity. |
| Shielded Metal Arc Welding (SMAW) | Versatile, portable, uses flux-covered electrodes | Field welding, varying thicknesses | Electrode: E7018 (low-hydrogen, 420 MPa tensile strength) | Current: DC reverse polarity Electrode Diameter: 3.2–4.0 mm |
Advantages: Suitable for dirty or rusty surfaces. Limitation: Slag removal required; skill-dependent for defect-free welds. |
| Laser Welding | High-energy density, non-contact process | Precision components, thin metals | No shielding gas (vacuum or ambient) | Power: 1–10 kW Welding Speed: 1–10 m/min |
Advantages: Narrow HAZ, minimal distortion, high automation potential. Limitation: High equipment cost; limited to small-scale or high-precision applications. |
Post-Welding Heat Treatment for 100MnCrW4 Tool Steel
I believe post-welding heat treatment is key for 100MnCrW4 (O1) tool steel. It ensures the steel is strong, easy to machine, and lasts longer. We use three main heat treatments after welding: stress relieving, annealing, and normalizing. Based on my experience, each process has different goals. They use specific temperatures to get the best results.
Stress Relieving for Welded 100MnCrW4 Tool Steel
This process reduces stresses left from welding, machining, or other steps. Doing this lowers the risk of the steel warping or cracking. It also improves its dimensional stability.Heat the welded part evenly to 650°C (1200°F). Keep it at this temperature for 2 hours. Then, cool it down, but limit the cooling speed to 500°C (930°F). After that, let it cool in the open air.Imagine a welded tool steel block. We heat it to 650°C for 2 hours for stress relief. We cool it slowly to 500°C, then air cool it. The block is now ready for more machining or hardening. The risk of warping is much lower.
Annealing: Making Steel Softer and Removing Stress After Welding
I use annealing to soften the steel and improve its internal structure. It also removes stress from welding or working the steel. This makes the steel easier to machine again.
The following is the annealing process:Heat the steel slowly to 802–816°C (1475–1500°F). Do not heat faster than 222°C (400°F) per hour.Hold it at the target temperature. Allow 1 hour for every inch (25.4mm) of thickness. The minimum time is 2 hours.Cool it down inside the furnace. You must control this cooling very carefully. Limit the rate to 28°C (50°F) per hour until it reaches 538°C (1000°F).Once it reaches 538°C, you can continue cooling it in the furnace or let it cool in the air to room temperature.After annealing, the hardness should be around 212 HBW. From my experience, this creates great conditions for later steps like hardening.
Normalizing: Improving Grain Structure After Welding
Normalizing helps create an even and fine grain structure. It removes welding stress. It also promotes consistent properties for later heat treatments.
The following is the normalizing process:Heat the welded steel part above its Ac3 critical temperature. For 100MnCrW4, Ac3 is 791°C. I suggest normalizing around 810°C, which is about 19°C above Ac3.Hold this temperature for a short time, usually just a few minutes.Let it cool down in still air.Key temperatures are Ac1 (austenite starts forming): 730°C, and Ac3 (austenite formation complete): 791°C. I normalize around 810°C.
Common Welding Problems and Fixes for 100MnCrW4 Tool Steel
In my workshop, I found 100MnCrW4 tool steel very difficult to weld. This steel has a complex mix of alloys. From my experience, it resists during welding. It often threatens to crack with each pass of my torch. After years at the bench, I’ve learned you must understand this material. Knowing its difficult nature is critical for success. Using the right techniques changes everything for me. I feel the frustration lessen. It’s like figuring out a secret. A weld that could have been a disaster turns into a strong, durable joint. I suggest recognizing the common issues is half the work. Each successful weld feels like a personal win. It’s a challenging steel, but the results are satisfying.
1. Cracking
It cracks when it cools too fast or absorbs hydrogen. This often happens with damp electrodes or wrong cooling speeds.100MnCrW4 tool steel cracks easily. Based on my experience, failure rates can go over 30% if you weld without preheating and post-heat treatment.
Solution:I recommend preheating the base metal to 200–300°C before you start welding.After welding, heat it again. Then, let it cool slowly using insulation.I suggest using low-hydrogen materials like E7018 or electrodes made for this tool steel.To fix cracks: Drill holes at each end of the crack. Grind out the cracked part completely. Make sure everything is very clean and use dry electrodes.
2. Carbide Build-up (Precipitation)
Leaving the steel too hot for too long between weld passes causes carbides to form. You should keep the temperature below 250°C. Carbides form along the tiny edges inside the metal. This makes the steel less tough.If the temperature between passes goes above 250°C, you might see 10–15% more carbide build-up in certain tool steels.
Solution:I recommend keeping the temperature between passes below 250°C.Try not to heat and cool it too many times. Also, do not apply welding heat for too long.
FAQs on 100MnCrW4 Welding
Is 100MnCrW4 Tool Steel Weldable?
Yes, you can weld 100MnCrW4 (O1 tool steel, 1.2510) using standard methods. Based on my experience, its specific chemistry means you need to take care. If you don’t weld it correctly, I find it can crack or its hardness might change.
What filler materials are compatible?
Match base metal composition or use high-toughness alloys (e.g., 1.2510-specific fillers)
How to verify weld quality?
Recommend non-destructive testing (NDT) methods: dye penetrant or ultrasonic testing.
summary
After working with 100MnCrW4 tool steel for years, I’ve found that success is in the details. Based on my experience, careful preparation, the right welding method, and proper heat treatment really matter. I have personally seen bad welds become strong joints just by following good procedures. I suggest being patient during preheating and cooling; it’s as vital as your actual welding skill. If you respect how this specific steel behaves, you will get consistent welds. Those welds should be free of cracks and last a long time. From what I’ve seen, the secret isn’t complex. It’s about understanding the steel. You need to work with its nature, not fight it.
