I often ask myself why some drill bits last so long, while others wear out fast. I think choosing between high-speed tool steel and chrome steel is not just about their names sounding strong. Based on my experience, each metal offers its own set of advantages and disadvantages. I’ve learned that the right steel makes a huge difference. This is true if you’re doing a small fix at home or working in a large factory. But I notice most people miss one key detail in their decision…
Composition of high speed tool steel and chromium steel
I find that high-speed tool steel (HSS) has a very mixed makeup of metals. This special mix helps it perform well in tough jobs. For instance, I often see 18-4-1 HSS. It contains about 18% tungsten, 4% chromium, and 1% vanadium. Its carbon content is usually between 0.6% and 0.8%. If you look at grades like M2, I notice they include over 7% of molybdenum, tungsten, and vanadium put together. They also have more than 0.60% carbon. I observe that the chromium in these steels is almost always around 4%. This amount is very important. It helps the steel harden deeply. It also helps create what we call martensite during heat treatment.
| Element | High-Speed Tool Steel Composition Range | Chrome Steel Composition Range |
|---|---|---|
| Carbon (C) | 0.6–1.25% | 0.9–1.1% |
| Chromium (Cr) | ≈4% | 1.0–1.6% |
| Tungsten (W) | 6–18% | Minimal or none |
| Molybdenum (Mo) | 2–10% (replaces part of W in some grades) | Minimal or none |
| Vanadium (V) | 1–4% | Minimal or none |
| Cobalt (Co) | 0–8% (for red hardness) | Minimal or none |
| Manganese (Mn) | Trace amounts | Minimal or none |
| Silicon (Si) | Trace amounts | Minimal or none |
Comparing Compositions and How They Are Used
From my perspective, high-speed tool steel is an alloy with many parts. It has a good amount of tungsten/molybdenum and vanadium, about 4% chromium, and a medium amount of carbon (0.6–1.25%).On the other hand, I see chrome steel as mostly iron. It has about 1% of both chromium and carbon. It doesn’t have the many extra metals that HSS contains.
I believe the special metals in high-speed steels make them suitable for industrial cutting tools. These tools need to keep a sharp edge even when they get very hot. Because chrome steel has a simpler mix, I find it’s great for parts like bearings and gears. These parts need to resist wear and be hardenable. However, they don’t need to withstand the extreme heat that HSS can handle.
Properties of High-Speed Tool Steel and Chrome Steel
When I compare High-Speed Tool Steel properties with Chrome Steel properties, I see clear differences. These differences show up in how they perform and what you can use them for.
High-Speed Tool Steel Properties
- Heat Resistance and Red Hardness
I find that High-speed tool steel (HSS) handles heat exceptionally well. It stays hard even at temperatures up to 600°C (1112°F). This is super important for high-speed machining. This “red hardness” means the cutting edge doesn’t dull quickly when the tool gets hot. - Strength and Hardness Retention at Elevated Temperatures
HSS stays strong when other steels would start to soften. Take M2, for example. It keeps its edge and shape even at high temperatures. In my view, this makes HSS a great choice for tough machining tasks. - Toughness and Wear Resistance
HSS is reasonably tough. I find it’s good for most cutting tools, though it’s not as tough as some cold work steels. Its main benefit, in my opinion, is how well it resists wear, even at high temperatures. It contains high amounts of alloying elements like tungsten, molybdenum, and cobalt. These create hard carbides, which I know improve its wear resistance and ability to handle heat. - Edge Retention
I’ve noticed that some HSS types, like Vanadis 8 and CPM-10V, are excellent at keeping a sharp edge. This is due to their high vanadium content. This means tools stay sharp and efficient for a good while. - Compressive Strength
HSS also impresses me with its compressive strength. It’s very good. This allows it to handle a lot of pressure in heavy-duty operations.
Chrome Steel Properties
- Corrosion Resistance
I’ve observed that Chrome steel often has more chromium than HSS. For some grades, like D2, this means they get semi-stainless qualities. This helps them fight off rust. - Hardness and Sharpening
In my experience, you can frequently sharpen chrome steel to a finer edge. Take D2, for example. People know you can get it extremely sharp, and it will hold that sharpness through many uses. I find this quite useful. - Toughness and Impact Resistance
I find that chrome steel is often tougher than HSS. This means it’s less likely to break, chip, or crack. Because of this, I suggest chrome steel for jobs where it needs to take a hit. - Temperature Limitation
One thing I always keep in mind is that chrome steel doesn’t perform as well at high temperatures. It simply can’t stay hard like HSS can when operations generate a lot of heat. - Cold Work and Size Stability
From my observations, chrome steel is a good performer in cold work. It provides good hardness and resists abrasion at regular temperatures. I find A2 chrome steel, specifically, to be excellent for its size stability. It holds its shape much better than oil-hardening grades like O1, which I think is a significant advantage.
Let’s Compare Some Properties Side-by-Side
| Comparison | Toughness | Edge Retention | Rust Resistance | Sharpening Ease | Strength | Key Recommendation |
|---|---|---|---|---|---|---|
| M2 (HSS) vs. D2 | Similar | M2 better (finer grain) | D2 better | – | – | Choose M2 for edge durability; D2 for anti-rust. |
| O1 vs. D2 | – | – | D2 better | O1 simpler | O1 stronger | Use O1 for sharpening/strength; D2 for humidity. |
Application Links
From my experience with high-speed tool steel and chrome steel, I see clear differences in how they are used. These differences come from their unique properties, costs, and what they need to do in real-world jobs. Let me show you where each type is typically used:
Typical Applications of High-Speed Tool Steel
- Industrial Cutting Tools: I often see HSS used in drills, end mills, taps, and saw blades. HSS is great for these tools because it stays hard even when working fast and getting hot. This edge retention is why I recommend it here.
- Tools for High-Speed Machining: For high-speed machining, like lathe work or milling tough materials that get really hot, I find shops choose HSS. It handles the heat well. This means it stays sharp longer and doesn’t dull too quickly. I think this is a key benefit.
- Abrasive Wear Applications: I’ve noticed HSS works very well for tools that face a lot of rubbing and friction, like broaching tools and gear cutters. It really holds up in these situations.
- Environments with Heavy Thermal Stress: In situations with a lot of heat stress, HSS is a solid choice. Other steels might soften, but HSS keeps going. This, in my view, means tools last longer and production stays steady.
Chrome Steel / Tool Steel Application Areas
- Punches, Dies, and Forming Tools: Based on my experience, I recommend chrome steel for cold work tools. These include tools for punching, shearing, and stamping. These jobs need tough edges and a medium level of hardness.
- Die Casting and Hot Work Molds: I find chrome steel is a good pick for die casting and hot work molds. Think of molds for hot forging, dummy blocks, and plastic injection. It holds its shape well even when heated and cooled many times.
- General-Purpose Tools: I often see chrome steel in everyday tools too. This includes knives, chisels, and various hand tools. These items, in my opinion, need a good mix of toughness and hardness but usually don’t face very high heat.
Strategic Comparison: Choosing Between HSS and Chrome Tool Steel
- Toughness & Impact Resistance: For toughness and handling impacts, I prefer chrome tool steels like S2 and A2 grades. They are much less likely to break or chip compared to HSS when things get rough.
- Heat & Speed Performance: When I need something for jobs with lots of heat and high speeds, I choose high-speed steel. This is especially true for continuous machining or cutting tough materials where the tool needs to stay sharp.
- Size Stability: If keeping the exact shape is critical, like in precision stamping dies, I’ve found A2 tool steel is better than oil-hardening types. It holds its size better over time.
- Cost & Material Selection: Looking at cost, HSS usually costs more. However, I believe it pays off with a long life if you need speed and high output. Chrome steel, on the other hand, is quite versatile. I find it’s good for jobs with less heat, more impacts, or general wear.

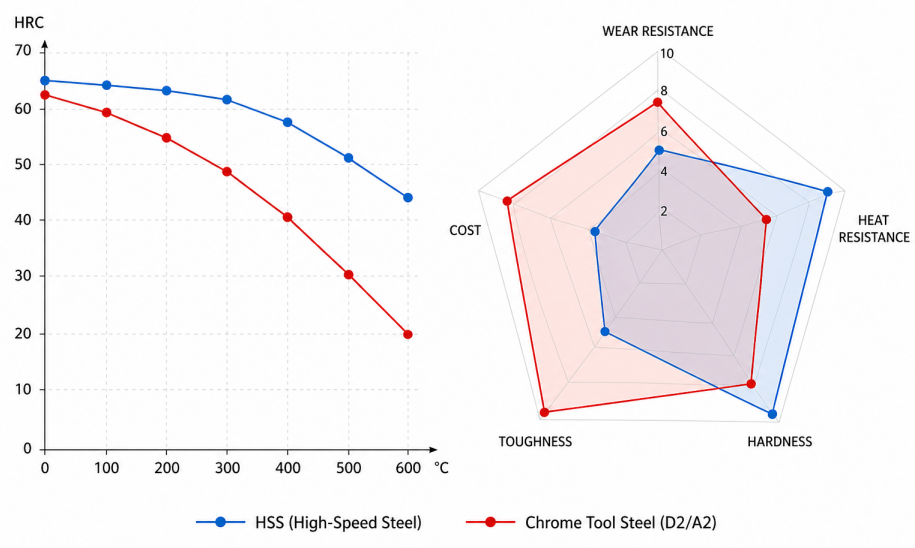

Direct Comparison Table: High-Speed Tool Steel vs. Chrome Steel
| Property / Feature | High-Speed Tool Steel (HSS) | Chrome Steel (Typical Alloy/Tool Steel) |
|---|---|---|
| Typical Alloying Elements | Contains significant tungsten (5–18%), molybdenum (2–10%), vanadium (1–4%), cobalt (0–8%), ~4% chromium, and 0.6–1.25% carbon. | Key elements include chromium (1–1.6%) and carbon (0.9–1.1%). May contain small amounts of vanadium, low molybdenum; iron-based. |
| Chromium Content | Approximately 4% (critical for deep hardening and martensite formation). | 1–1.6% in bearings and common grades; some tool steels (e.g., D2) contain 12–18%. |
| Tungsten Content | 6–18% (varies by grade; essential for high-temperature hardness). | Often <0.5%. |
| Carbon Content | 0.6–1.25% (varies by grade; impacts hardness and wear resistance). | 0.9–1.1% in bearings; tool steels may contain higher amounts. |
| Hardness (HRC) | 62–67 HRC (maintains hardness at elevated temperatures). | 60–66 HRC (primarily at room temperature; hardness degrades when heated). |
| Red Hardness | Retains hardness up to 600°C (1112°F). | Significant hardness loss above 200–250°C (392–482°F). |
| Toughness | Moderate to low (prone to brittleness under shock). | Generally higher; better suited for impact applications. |
| Wear Resistance | Extremely high (ideal for high-friction, high-temperature applications). | Excellent at room temperature; degrades at elevated temperatures. |
| Machinability | Difficult to machine when hardened (best machined prior to heat treatment). | Easier to machine in annealed state. |
| Corrosion Resistance | Low to moderate (not stainless). | Higher in high-chromium tool steels (e.g., D2); low in grades like 52100. |
| Cost | High (due to expensive alloying elements). | Moderate to low (lower alloy content). |
| Key Applications | Drills, taps, end mills, saw blades, gear cutters, broaches. | Bearings, dies, punches, chisels, knives, hand tools. |
| Industries | Metalworking, machining, heavy industrial manufacturing. | Automotive, tooling, machine building. |
| Example Grades | M2 (6.5% W, 5% Mo, 2% V, 4% Cr, 0.85% C), M42, T1, M35. | 52100 (1.5% Cr, 1% C), A2, D2, O1. |
Summary
Choosing between HSS and chrome steel hinges on understanding their distinct properties. HSS excels in high-speed, high-heat applications due to tungsten/molybdenum alloys and red hardness, retaining sharpness at extreme temperatures. Chrome steel, with simpler compositions, prioritizes toughness, impact resistance, and corrosion protection for cold work or wear-prone tools. While HSS offers superior edge retention and thermal stability, chrome steel provides cost-effective durability in low-heat scenarios. Neither is universally superior; the optimal choice depends on balancing heat exposure, mechanical stress, and budget. Always prioritize application demands—whether it’s enduring friction at 600°C or surviving repetitive impacts—to maximize tool lifespan and performance.
