Introduction:
Die-casting engineers are making a switch in their water-cooled tooling for aluminum and zinc alloy production. They’re choosing 1.2365 molybdenum steel over H21 tungsten steel. This isn’t a random choice.
Molybdenum-based hot work steels beat traditional tungsten grades in three key areas: thermal shock resistance, thermal conductivity, and machinability. Plus, they cost 30-40% less in today’s metals market.
But many manufacturers still stick with H21. Why? “It’s what we’ve always used.”
This comparison breaks down decades of habit. It shows why 1.2365 vs. H21 matters now more than ever. You’ll see the metal differences that give molybdenum steels better thermal fatigue resistance. You’ll get real cycle life data from automotive and electronics die shops.
Are you dealing with early heat checking? Need to justify capital spending? Or just wondering if there’s something better than your current tungsten-based dies? Understanding why 1.2365 is replacing H21 for water-cooled applications can boost your tooling ROI and production uptime.

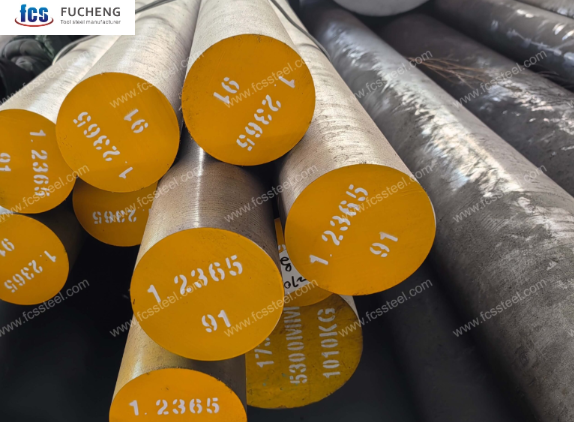

1.2365 Steel Profile: The Molybdenum Challenger
1.2365 uses a chemistry mix built for water-cooled spots. It skips the heavy tungsten found in other grades. Instead, you get a focus on thermal stability and conductivity. Check the technical details below to see how it performs.
Chemical Architecture & Composition
| Element | Content Range (%) | Function |
|---|---|---|
| Chromium (Cr) | 2.70 – 3.75% | Gives you basic corrosion resistance. It helps hardening too. |
| Molybdenum (Mo) | 2.00 – 3.00% | The standout feature. You get a ~1:1 Cr-Mo ratio here. This boosts thermal conductivity and shock resistance. |
| Vanadium (V) | 0.10 – 0.75% | Refines grain structure. This keeps the steel tough. |
| Carbon (C) | Class A: 0.28–0.35% Class B: 0.35–0.45% |
Class A: Gives you tough cores. Class B: Creates harder surfaces that resist wear. |
Note: Watch that 1:1 Chromium-Molybdenum balance. It transfers heat fast. Plus, you avoid the brittle carbides common in tungsten steels.
Heat Treatment & Hardness Response
| Process Step | Temperature | Resulting Hardness (HRC) |
|---|---|---|
| Hardening | 1024°C (Air Cool) | – |
| Temper 1 (Break-in) | 149°C | ~58 HRC (High wear resistance) |
| Standard Working | Double Temper | 50 – 52 HRC (Balanced performance) |
| Temper 2 (Service) | 649°C | ~41 HRC (Max thermal shock resistance) |
Tip: Die shops often start with a lower temper (~58 HRC) for break-in. Then, they temper back to ~41-45 HRC. This fights off thermal cracking later.
Thermal & Physical Properties at Working Temperatures
| Property | at 20°C (Room Temp) | at 500°C (Working Temp) | at 600°C |
|---|---|---|---|
| Thermal Conductivity | 30.0 W/m·K | 30.1 W/m·K | 29.7 W/m·K |
| Elastic Modulus | 207 GPa | 176 GPa | 165 GPa |
| Electrical Resistivity | 0.37 Ω·mm²/m | – | 0.89 Ω·mm²/m |
Engineering Insight: Check the Elastic Modulus drop (207 → 176 GPa). This works in your favor. As the steel heats up, it loses some stiffness. So, it absorbs thermal expansion stress instead of cracking. Plus, thermal conductivity stays stable around 30 W/m·K. Your cooling cycles remain predictable.
H21 Steel Profile: The Tungsten Incumbent
H21 (3Cr2W8V) defines the “old school” high-tungsten hot work group. With a massive tungsten load, it relies on brute force—hardness and heat resistance—rather than flexibility. While it solves specific high-heat problems, those same traits create the bottlenecks that are pushing shops toward 1.2365.
Chemical Architecture & Composition
| Element | Content Range (%) | Function & Effect |
|---|---|---|
| Tungsten (W) | 8.50 – 10.00% | The main engine. Provides extreme red hardness. However, it forms heavy carbides that reduce toughness and block heat transfer. |
| Chromium (Cr) | 3.00 – 3.75% | Standard hardenability. Lower than many modern grades, as W does the heavy lifting. |
| Carbon (C) | 0.28 – 0.40% | Combines with tungsten to form hard carbides. Good for wear, bad for cracking. |
| Vanadium (V) | 0.30 – 0.60% | Secondary grain refiner. |
Critical Flaw: Notice the Tungsten content (up to 10%). This creates “carbide segregation”—clumps of hard material that act as stress points. In water-cooled dies, these clumps are where cracks start.
Physical Properties & Performance Ceiling
| Property | Value at Working Temp | Real-World Impact |
|---|---|---|
| Thermal Conductivity | ~24-25 W/m·K | Poor. Moves heat slowly. This causes heat buildup in the die, leading to longer cycle times and “hot spots.” |
| Red Hardness Limit | > 650°C | Excellent. The steel stays hard even when glowing red. Great for dry forging, unnecessary for water-cooled casting (400-500°C). |
| Impact Toughness | Low / Brittle | Risky. The stiff structure struggles to flex. When cold water hits hot steel, H21 tends to “check” (crack) quickly. |
The Trade-Off: H21 is a specialist. It trades thermal conductivity and toughness for extreme heat resistance. In water-cooled applications, you are paying for heat resistance you don’t need, and losing the conductivity you actually want.
When Tungsten Steel Still Makes Sense
H21 works well in static high-temperature jobs. Think extrusion dies for brass, hot forging tools, or mandrels that stay hot all the time. Your die avoids rapid water cooling or thermal cycling? Tungsten’s red hardness advantage still counts.
Water-cooled aluminum and zinc die-casting is different. The thermal conductivity gap hurts performance. Poor thermal fatigue resistance makes H21 a weak pick for these jobs.

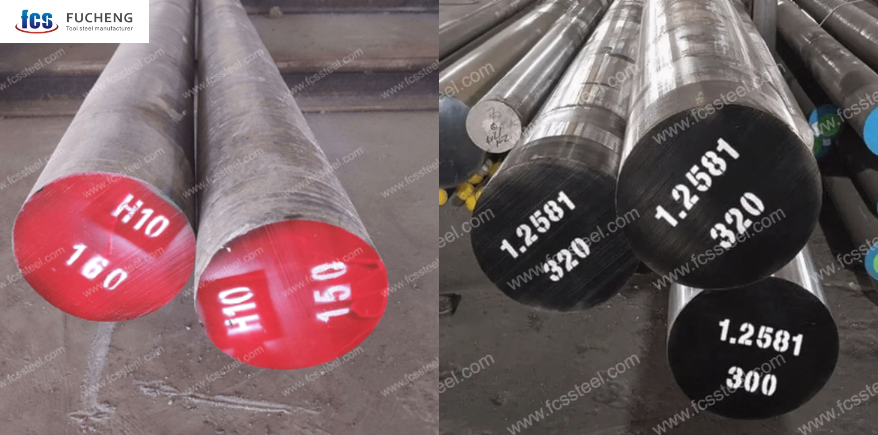

1.2365 vs. H21: Water-Cooled Performance Battle
Water-cooled die casting is a brutal environment for steel. It’s not just about withstanding heat; it’s about surviving the rapid “hot-cold-hot” shock waves thousands of times a day. To work effectively in this setup, your mold steel must meet three non-negotiable demands:
- Rapid Heat Extraction: The steel must pull heat away from the cavity surface instantly. If heat lingers, you get longer cycle times and warped parts.
- Thermal Shock Resistance: It needs to expand and contract without unzipping. Brittle steels crack (heat check) when quenched by internal water lines.
- Impact Toughness: The material must resist cracking at stress points—like corners and gate entries—even when the die is relatively cool during startup.
Head-to-Head Performance Comparison
| Critical Factor | 1.2365 (Molybdenum Steel) | H21 (Tungsten Steel) |
|---|---|---|
| Thermal Conductivity | High. Moves heat 15–20% faster, keeping the die surface cooler. | Low. Traps heat, leading to hot spots and slower cycles. |
| Water Cooling Safety | Safe. Approved for aggressive water cooling lines near the cavity. | Risky. “Restricted” use. Rapid cooling causes brittle tungsten carbides to crack. |
| Thermal Fatigue | Excellent. The structure “flexes” under thermal stress. Cracks appear much later. | Poor. Prone to early heat checking (network cracks) due to stiffness. |
| Toughness | High. Resists snapping at core pins or thin walls. | Brittle. Chipping is common at ejector holes and corners. |
| Machinability | Fast. Cuts smoothly like standard carbon steel. | Slow. Abrasive carbides eat through tooling and slow down EDM. |
The Bottom Line: H21 fights heat with hardness, which works for static forging. 1.2365 fights heat with conductivity and flexibility, which is exactly what water-cooled dies need.
The Economic Case: Why Molybdenum Wins
Shops are switching from H21 to 1.2365 for water-cooled jobs. Why? It’s simple. Four practical facts boost your profit.
1, Superior Thermal Shock Resistance
H21 contains heavy tungsten carbides (8.5–10%). These make it hard, but brittle. The “clumps” start cracks during fast cooling. 1.2365 uses balanced molybdenum (1.10%) instead. You get a finer, even grain structure. The steel flexes under heat stress rather than breaking. This delays heat checking for much longer.
2. Better Performance in the 400–500°C Zone
Water-cooled aluminum and zinc casting usually happen here. H21 needs extreme heat (>550°C). At lower temps, it gets brittle. 1.2365 fits this mid-range perfectly. You get stable wear resistance. Plus, you avoid sudden cracks.
3. Massive Density Savings (The “Volume” Math)
Many overlook this cost factor. Tungsten steel is heavy (19.3 g/cm³). Molybdenum steel is lighter (10.2 g/cm³). A block of H21 weighs almost double a same-sized 1.2365 block. You buy steel by weight. But you use it by volume. Switch to 1.2365. You cut raw material costs by 40–60% right away.
4. Faster Machining & Polishing
Machinists like 1.2365. The even structure cuts smooth. Your tools last longer. H21 has abrasive tungsten carbides. These eat grinding wheels 15–20% faster. They slow down EDM work, too. Choose the molybdenum option. You save time and labor costs on every mold.
Cost Analysis: Price, Supply & ROI
Table 1. Price & Supply Chain Comparison (2025)
| Item | 1.2365 (Mo-based hot work steel) | H21 (3Cr2W8V, W-based) |
|---|---|---|
| Key alloy cost driver | Molybdenum (2.6–3.0%) | Tungsten (8–10%) |
| Typical market price* | USD 530–600 / ton | USD 500–700 / ton |
| Price volatility | Low–moderate | High |
| Main supply concentration | China ~40% + Chile / USA / Peru | China 80–90% |
| Geopolitical exposure | Medium | High |
| Availability in China | High (large LF+VD capacity) | Moderate (W bottlenecks) |
| Supply chain stability | Stable | Sensitive to W policy & mining output |
*Price note:
H21 pricing fluctuates mainly with tungsten concentrate prices and export policy.
1.2365 pricing is driven by molybdenum trends, which historically show lower volatility and broader sourcing.
Table 2. Total Cost of Ownership (TCO) Comparison
| Cost Factor | 1.2365 | H21 |
|---|---|---|
| Machinability | High (≈90–95%) | Medium |
| Heat treatment risk | Low | Higher (W carbide cracking risk) |
| Tooling & machining time | Shorter | Longer |
| Service temperature need | ≤600 °C | ≤620 °C |
| Typical die life (water-cooled casting) | 200,000+ cycles | No clear advantage |
| Maintenance interval | Longer | Shorter |
| 3-year TCO (relative) | Baseline (–15~25%) | Higher |
The Hidden “Volume” Cost Trap: Density Counts
Most buyers miss this simple math. You buy steel by weight (kg). You use it by volume (cm³).
The Purchase Scenario: Same Mold, Different Costs
| Heavier Option (H21 Tungsten) High density adds “dead weight.” |
Material Bill $$$ High |
| Lighter Option (1.2365 Molybdenum) Fill the same volume. Use fewer kilograms. |
Material Bill ~30-40% Lower |
💡 The Bottom Line: Switch to 1.2365. You get the same size block for your mold base. You pay for less total weight. Pocket the savings before you start machining.
Industry Shift: Real-World Adoption Trends
Die shops are clearly dividing these two materials based on one factor: water cooling. While H21 was once the default, the industry has learned that molybdenum-based 1.2365 handles thermal shock far better in modern, fast-cycling molds.
Where to Use 1.2365 (Molybdenum Steel)
This is now the go-to choice for water-cooled applications working below 550°C, particularly where thermal fatigue is the main killer.
- Automotive Transmission Housings: Perfect for water-cooled aluminum dies. Shops report boosting tool life from 120,000 to over 220,000 shots compared to H21, significantly delaying heat checking.
- Zinc Battery Housings & Connectors: The superior toughness (no brittle tungsten carbides) prevents core pins from snapping during ejection. Pin replacement rates drop by roughly 60%.
- High-Volume Electronics: For laptop hinges and heat sinks running 24/7. It maintains dimensional stability for 200,000+ cycles at working temperatures of 400-500°C.
- High-Polish Mold Inserts: European toolmakers prefer it for cosmetic parts because the finer grain structure allows for a cleaner mirror finish than the carbide-heavy H21.
Where to Keep Using H21 (Tungsten Steel)
Don’t write off H21 completely. It remains superior for dry, high-heat applications where “red hardness” matters more than thermal shock resistance.
- Brass Extrusion Dies: These run effectively at temperatures above 600°C, where H21’s tungsten content keeps the steel hard.
- Hot Forging Tools: excellent for static high-temperature jobs that don’t face rapid water quenching.
- High-Heat Mandrels: Any application requiring sustained hardness at 620°C+ without thermal cycling risks.
Global Adoption Trends: The Economic Reality
The transition from tungsten to molybdenum started gaining real momentum between 2018 and 2020, driven by a simple reality: performance coupled with cost. While tungsten prices spiked and supply chains wobbled, molybdenum remained relatively stable.
Asian markets led this shift, with Chinese toolmakers ramping up local 1.2365 production to cut lead times. North America initially lagged due to legacy certifications (“It’s what we’ve always used”), but by 2023, major Tier 1 automotive suppliers updated their specs to list 1.2365 as preferred for water-cooled tooling.
The math is hard to ignore now. For water-cooled aluminum and zinc dies, switching to 1.2365 typically drops total material costs by 35-40% while extending service intervals by weeks. It’s no longer just an alternative; for water-cooled applications, it’s becoming the standard.
Decision Guide: Selection Matrix
Your actual operating conditions determine the right choice. This matrix breaks down selection factors into three groups: application type, performance needs, and budget limits.
Selection Framework by Application
Pick 1.2365 for these situations:
- Aluminum die-casting at 400-500°C surface temps. Water cooling channels sit 8-12mm from cavity surfaces.
- High-pressure zinc alloy work needs impact toughness above 45 J at room temperature. This stops core pin breaks.
- Fast-cycle production benefits from 32.6-34.4 W/(m·K) thermal conductivity. Cooling time drops 15-20%.
- Moderate continuous service up to 350°C. Short peaks hit 500°C during fill phases.
Choose H21 for:
- Static high-temp forging above 550°C. Red hardness keeps cutting edges sharp during brass or steel forming.
- Air-hardening needs in complex shapes. Oil quench distortion goes past ±0.15mm tolerance limits.
- Extreme temperature mandrels hold 620°C for long periods. They stay above 48 HRC without softening.
Performance Trade-Offs
| Critical Factor | 1.2365 Advantage | H21 Advantage |
|---|---|---|
| Thermal shock cycles | Handles 200,000+ water-cooled cycles | Cracks show up at 75,000 cycles with water cooling |
| Machining time | 25% faster grinding and EDM | Tungsten carbides resist tooling |
| Toughness at 20°C | 60-70 J impact strength | 40-50 J (tungsten makes it brittle) |
| Red hardness ceiling | Softens above 550°C | Holds 48+ HRC at 620°C |
Hybrid Tooling Strategy
Complex dies work better with material zoning. Cavity inserts touching molten metal get 1.2365. This resists thermal fatigue. Ejector systems and core supports also use 1.2365. They absorb impact better. Save H21 for hot shear edges or extrusion mandrels running over 550°C continuously. That’s rare in water-cooled aluminum work.
The cost math is simple. Your die runs below 500°C with water cooling? 1.2365 saves 40% on material. Plus it lasts 30% longer. That’s a combined 70% cost cut versus H21 over three replacement cycles.
Conclusion:
The shift from H21 to 1.2365 molybdenum steel for water-cooled dies is real. It’s smart business, not just a trend. H21 worked for years. But 1.2365 handles thermal shock better. It cools faster. And it costs 30-40% less. For high-volume shops, it’s the clear winner.
Comparing 1.2365 vs. H21? Ask one question. Do you need heat resistance above 650°C for dry forging? If no, stop overpaying. Molybdenum steel gives you better performance for much less money.
Next steps? Check your water-cooled die list. Pick a tool aimed for replacement. Run a pilot with 1.2365. The results—from aluminum casting to plastic molding—don’t lie. Molybdenum doesn’t just replace tungsten here. It beats it.
